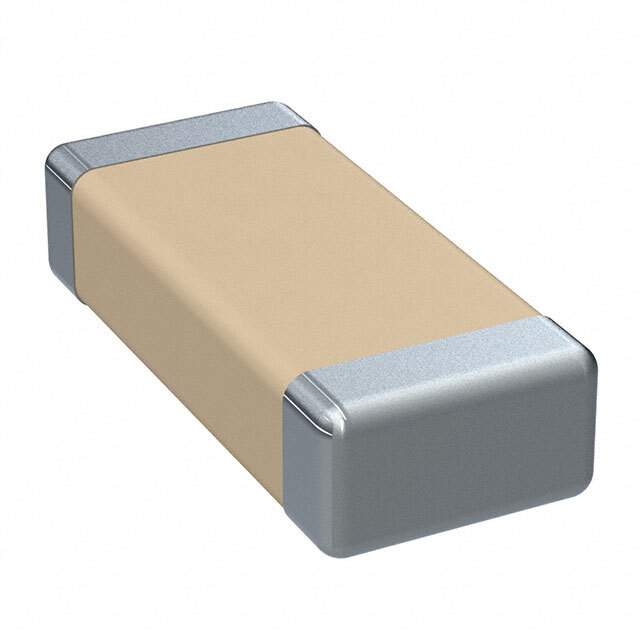

Same model may have multiple batches, images only for reference.

C1206C101J5GACTU

Name: C1206C101J5GACTU
Brand: Kemet
SKU: 1171194
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	C1206C101J5GACTU
Manufacturer	Kemet
Catalog	Ceramic Capacitors
Description	Multilayer Ceramic Capacitor, 100 pF, 50 V, ± 5%, C0G (NP0), 1206 [3216 Metric]
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Capacitance	100 pF
Case / Package	1206
Case Code (Imperial)	1206
Case Code (Metric)	3216
Contact Material	Tin
Contact Plating	Tin
Depth	1.6 mm
Dielectric	C0G
Dielectric Material	Ceramic
Dissipation Factor	0.1 %
Height	780 µm
Lead Free	Lead Free
Length	3.2 mm
Material	Ceramic
Max Operating Temperature	125 °C
Min Operating Temperature	-55 °C
Mount	PCB, Surface Mount
Number of Pins	2
Packaging	Cut Tape
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Schedule B	8532240020, 8532240020
Temperature Coefficient	30 ppm/°C
Termination	SMD/SMT
Thickness	889 µm
Tolerance	5 %
Voltage	50 V
Voltage Rating	50 V
Voltage Rating (AC)	50 V
Voltage Rating (DC)	50 V
Width	1.6002 mm
Win Source Part Number	1171194-C1206C101J5GACTU
Categories	Ceramic Capacitors
Manufacturer	Kemet
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian C1206C101J5GACTU CAD Model

Description

The Kemet C1206C101J5GACTU is a ceramic capacitor with a capacitance of 100 pF and a voltage rating of 50 V.

Packaging: Cut Tape
Termination: SMD/SMT
Contact Material: Tin
Contact Plating: Tin
Capacitance: 100 pF
Voltage Rating: 50 V
Tolerance: 5 percent
Temperature Coefficient: 30 ppm/°C
Thickness: 889 µm
Height: 780 µm
Width: 1.6002 mm
Depth: 1.6 mm
Lead-Free: Yes
Mounting: Surface Mount Technology
Win Source Part Number: 1171194-C1206C101J5GACTU
