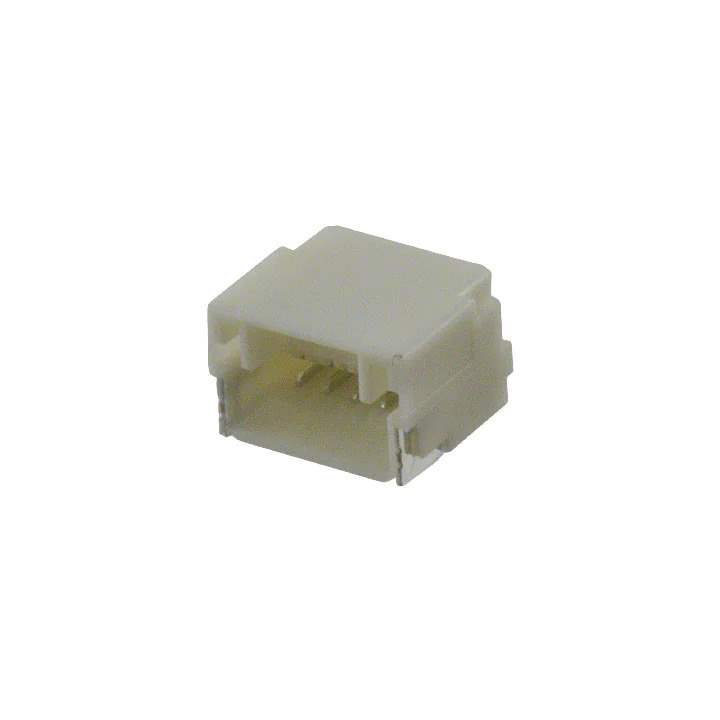

SM05B-NSHSS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM05B-NSHSS-TB(LF)(SN)

Part No SM05B-NSHSS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 5POS 1MM / Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series NSH
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.173" (4.40mm)
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 50V
Base Product Number SM05B-NS
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849413-SM05B-NSHSS-TB(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM05B-NSHSS-TB(LF)(SN) CAD Model

Description

The 849413-SM05B-NSHSS-TB(LF)(SN) is a header connector with male pins from the NSH series.

  • Series: NSH
  • Feature: Solder Retention
  • Positions: 5
  • Mounting Type: Surface Mount, Right Angle
  • Latch: Latch Holder
  • Contact Material: Copper Alloy
  • Contact Finish: Tin (Mating)
  • Insulation Material: Polyamide (PA), Nylon
  • Voltage Rating: 50V
  • Current Rating: 1A
  • Temperature Range: -25°C to 85°C
  • Application: Board to Cable/Wire
  • Package: Tape & Reel
  • Standard Package Quantity: 1,500 pieces
