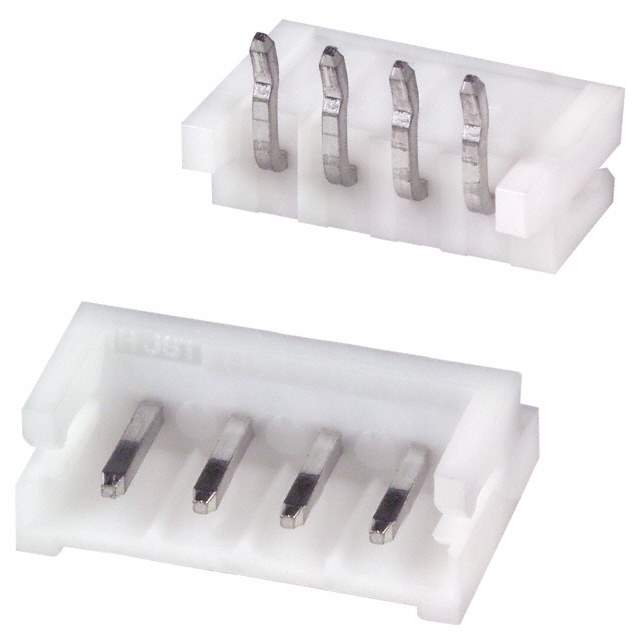

Same model may have multiple batches, images only for reference.

S4B-EH(LF)(SN)

Name: S4B-EH(LF)(SN)
Brand: JST Sales America Inc.
SKU: 510405
Availability: InStock
Rating: 4.93 (73 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S4B-EH(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER EH SIDE 4POS 2.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JST Sales America Inc.
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.50mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.165" (4.20mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C to 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating	3A
Voltage Rating	250V
Mated Stacking Heights	4.2mm
Win Source Part Number	1093700-S4B-EH(LF)(SN)
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian S4B-EH(LF)(SN) CAD Model

Alternative Products

Description

The JST Sales America Inc. 1093700-S4B-EH(LF)(SN) is a 4-position header connector with a male pin contact type.

Style: Board to cable/wire
Pitch-Mating: 2.50mm
Voltage Rating: 250V
Current Rating: 3A
Insulation Material: Polyamide (PA66), nylon 6/6
Material Flammability Rating: UL94 V-0
Design: Shrouded 3-wall
Fastening Type: Locking ramp
Mounting: Through hole, right angle
Temperature Range: -25°C to 85°C
