Same model may have multiple batches, images only for reference.

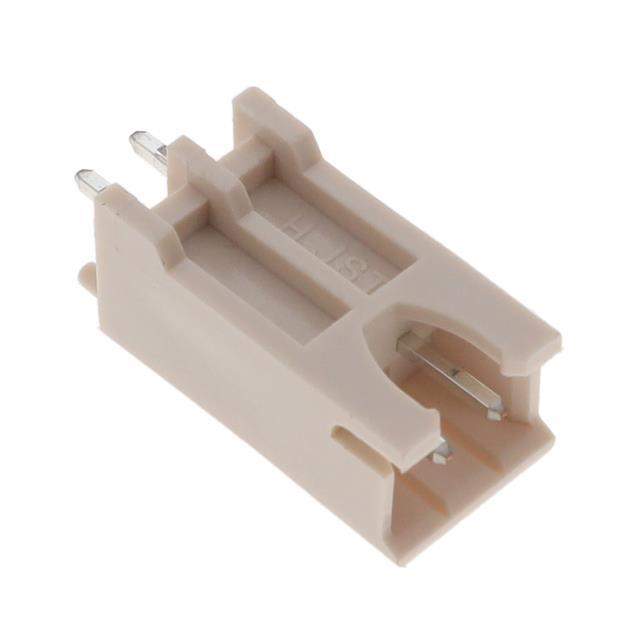

BH2B-XH-2(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BH2B-XH-2(LF)(SN)

Part No BH2B-XH-2(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.5MM / Connector Header Through Hole 2 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.559" (14.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A (AC/DC)
Voltage Rating 250VAC/DC
Base Product Number BH2B-XH
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 455-BH2B-XH-2(LF)(SN)
Standard Package 700
Win Source Part Number 1333283-BH2B-XH-2(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian BH2B-XH-2(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1333283-BH2B-XH-2(LF)(SN) is a male pin header connector with 2 positions and a press-fit and solder termination feature.

  • Voltage Rating: 250VAC/DC
  • Current Rating: 3A (AC/DC)
  • Shrouded: With 4 Walls
  • Contact Shape: Square
  • Pitch-Mating: 0.098" (2.50mm)
  • Contact Finish-Mating: Tin
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Style: Board to Cable/Wire
  • Product Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balance
