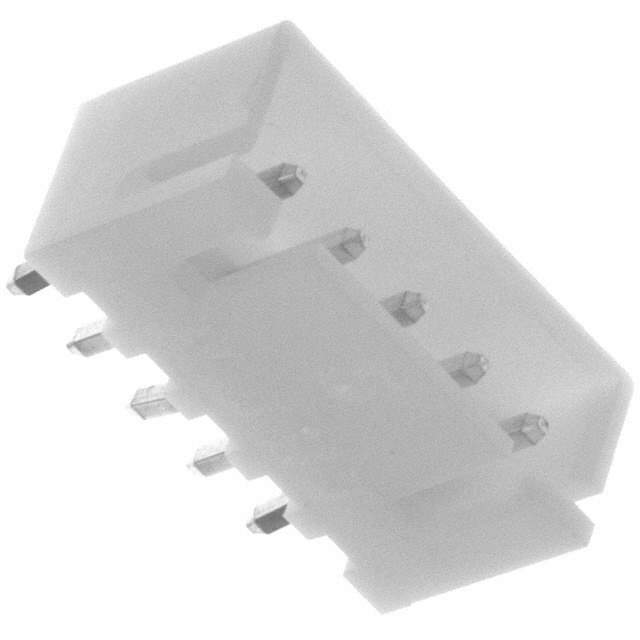

B5B-XH-AM(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B5B-XH-AM(LF)(SN)

Part No B5B-XH-AM(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.5MM / Connector Header Through Hole 5 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JST Sales America Inc.
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Base Product Number B5B-XH-A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number B5BXHAMLFSN,455-2239,B5B-XH-AMLFSN,(G)B5B-XH-AM(LF)(SN);
Standard Package 500
Win Source Part Number 1332420-B5B-XH-AM(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B5B-XH-AM(LF)(SN) CAD Model

Description

The 1332420-B5B-XH-AM(LF)(SN) electronic component is a male pin header connector manufactured by JST Sales America Inc.

  • Category: Connectors, Interconnects
  • Packaging: Bulk
  • Positions: 5
  • Board Guide: Yes
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1
  • Termination: Press-Fit and Solder
  • Fastening Type: Detent Lock
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Mated Stacking Height: 9.8mm
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 500 units
  • Mounting: Through Hole
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Style: Board to Cable/Wire
  • Pitch Mating: 0.098" (2.50mm)
  • Contact Finish-Mating: Tin
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): 3A
  • HTSUS: 8536.69.4040
