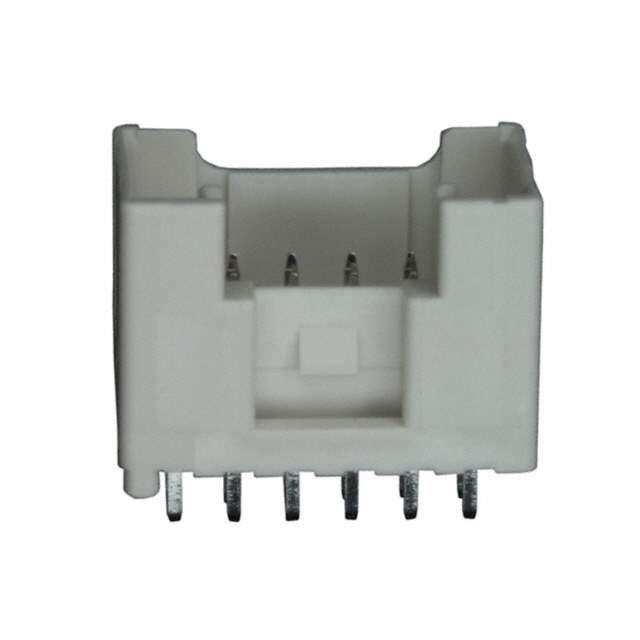

B12B-PUDSS-1(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B12B-PUDSS-1(LF)(SN)

Part No B12B-PUDSS-1(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PUD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 12
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 11mm
Base Product Number B12B-PUD
Other Names B(12)B-PUDSS-1(LF)(SN),B12BPUDSS1LFSN,455-2501
Standard Package 2,310
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293275-B12B-PUDSS-1(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B12B-PUDSS-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. PUD series connector is a rectangular connector header with male pins.

  • Series: PUD
  • Positions: 12
  • Positions Loaded: All positions
  • Pitch: 0.079” (2.00mm)
  • Voltage Rating: 250V
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Shrouding: Shrouded with 4 Walls
  • Mounting: Through-Hole
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Insulation Color: Natural
  • ECCN: EAR99
  • RoHS: Compliant
