Same model may have multiple batches, images only for reference.

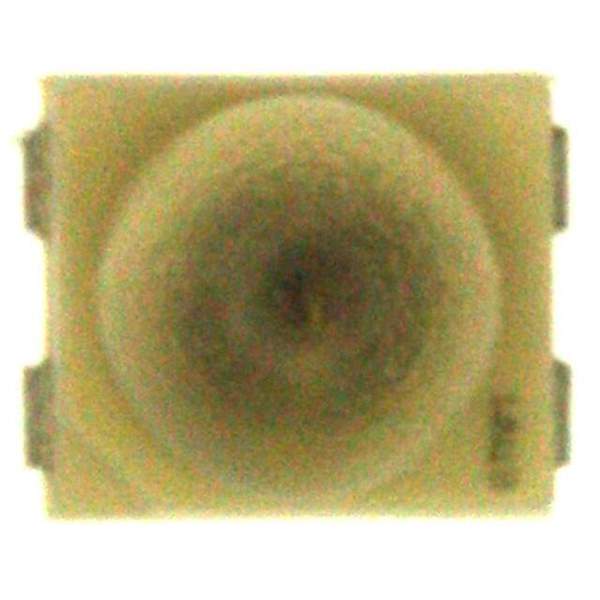

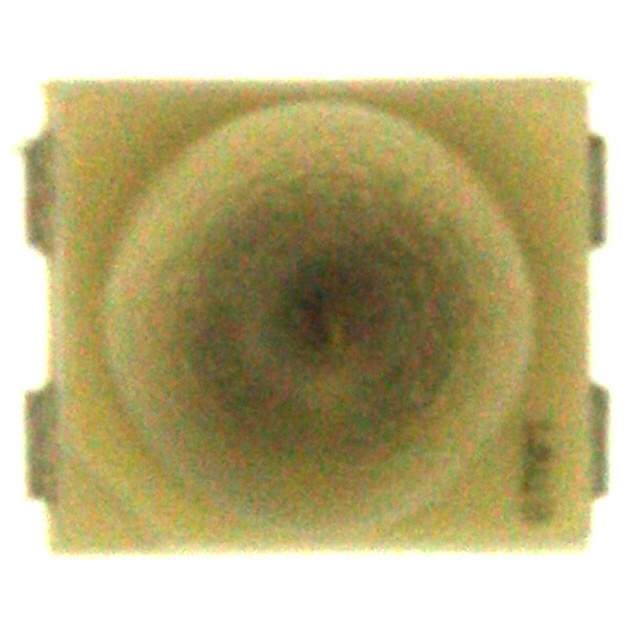

SFH 4249-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 4249-Z

Part No SFH 4249-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA SMD / Infrared (IR) Emitter 940nm 1.5V 100mA 25mW/sr @ 100mA 50° 4-PLCC
Datasheet
SFH 4249-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 25mW/sr @ 100mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.5V
Viewing Angle 50°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 4-PLCC
Base Product Number SFH4249
Other Names SFH 4249,Q65110A7519,475-2655-6,SFH4249Z,475-2655-1,475-2655-2,SFH4249-Z,SFH4249
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242453-SFH 4249-Z
Ultra Librarian 3D Model Ultra Librarian SFH 4249-Z CAD Model

Description

The SFH 4249-Z is an infrared LED emitter that is manufactured by ams-OSRAM USA Inc.

  • Win Source Part Number: 1242453-SFH 4249-Z
  • Popularity: low popularity product
  • Viewing Angle: 50 degrees
  • Wavelength: 940nm
  • Known for: its high radiant intensity
  • Package: 4-PLCC
