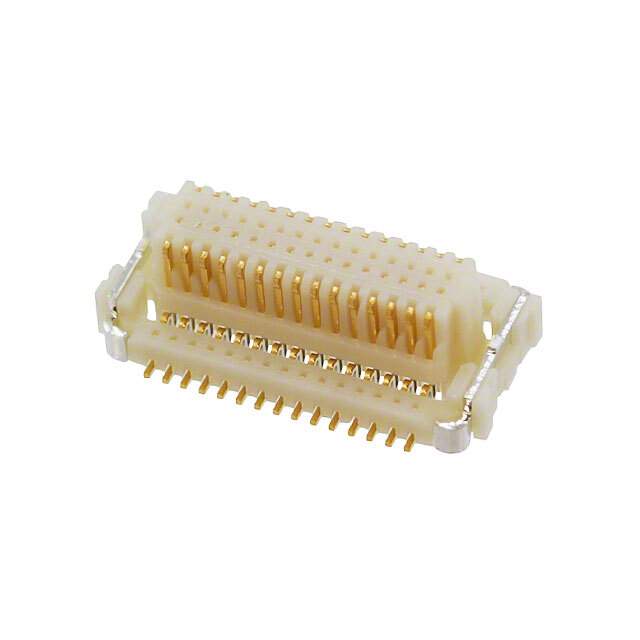

30RF-JMCS-G-1B-TF(N)(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

30RF-JMCS-G-1B-TF(N)(LF)(SN)

Part No 30RF-JMCS-G-1B-TF(N)(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN RCPT 30POS SMD GOLD / 30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JST Sales America Inc.
Series JMC
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 30
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Height Above Board 0.130" (3.30mm)
Base Product Number 30RF-JMC
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336871-30RF-JMCS-G-1B-TF(N)(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 30RF-JMCS-G-1B-TF(N)(LF)(SN) CAD Model

Description

The JMC series mezzanine connector is a receptacle type connector with a center strip contact.

  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Number of Positions: 30
  • Pitch: 0.50mm
  • Row Configuration: Double Row
  • Finish: Gold
  • Feature: Board Guide
  • Mounting Type: Surface Mountable
  • Height Above Board: 3.30mm
  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • Status: Obsolete
