Same model may have multiple batches, images only for reference.

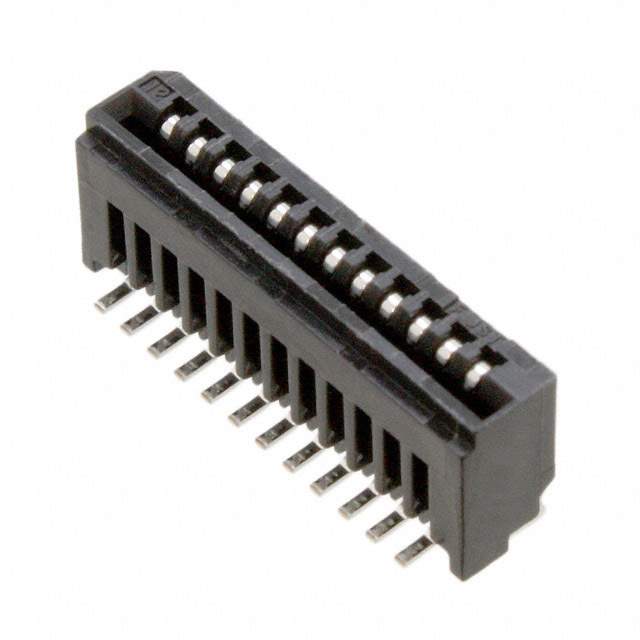

12FMN-BMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

12FMN-BMT-A-TF(LF)(SN)

Part No 12FMN-BMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 12POS 1.00MM SMD / 12 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Flat Flex Type FFC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 12
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.201" (5.10mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 12FMN-BM
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 455-1935-1,12FMNBMTATFLFSN,12FMN-BMT-A-TF(LF)(SN)-,455-1935-6,455-1935-2
Standard Package 1,000
Win Source Part Number 1333305-12FMN-BMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 12FMN-BMT-A-TF(LF)(SN) CAD Model

Description

The 1333305-12FMN-BMT-A-TF(LF)(SN) connector is a FFC, FPC (Flat Flexible) Connector Assembly from JST Sales America Inc. with 12 positions and a pitch of 0.039" (1.00mm).

  • Termination: soldered
  • Insertion Force: low insertion force (LIF)
  • Contact Finish: tin
  • Contact Material: phosphor bronze
  • Voltage Rating: 50V
  • Height Above Board: 0.201" (5.10mm)
  • FFC, FCB Thickness: 0.30mm
  • Housing Material: polyamide (PA6T), Nylon 6T
  • Material Flammability Rating: UL94 V-0
  • Color: black
  • Mounting Type: surface
  • Operating Temperature: -25°C ~ 85°C
