Same model may have multiple batches, images only for reference.

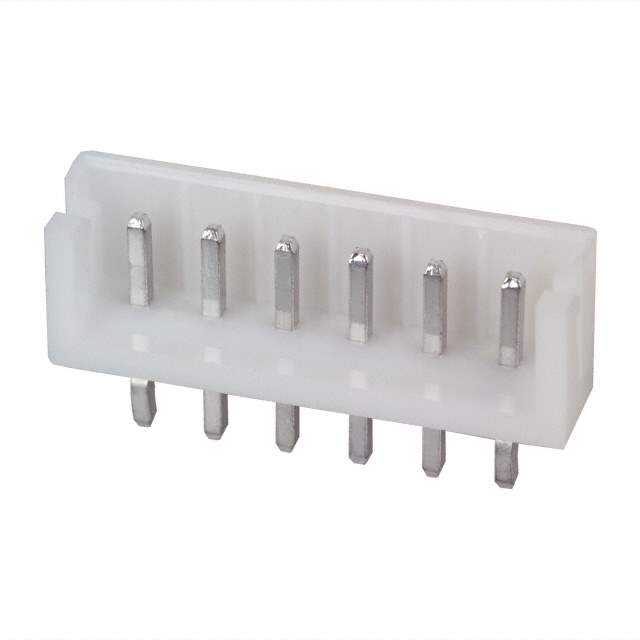

B6B-EH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B6B-EH-A(LF)(SN)

Part No B6B-EH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER EH TOP 6POS 2.5MM
Datasheet
B6B-EH-A(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Win Source Part Number 1021639-B6B-EH-A(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B6B-EH-A(LF)(SN) CAD Model

Description

JST Sales America Inc. brings to you the B6B-EH-A(LF)(SN) electronic component. Manufactured by JST Sales America Inc.

  • Type: Header
  • Number of Pins: 6 (Male)
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Shrouded: 3 Walls
  • Fastening Type: Friction Lock
  • Pitch-Mating: 2.50mm
  • Contact Finish-Mating: Tin
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Popularity: Medium
  • Supply and Demand Status: Balanced
