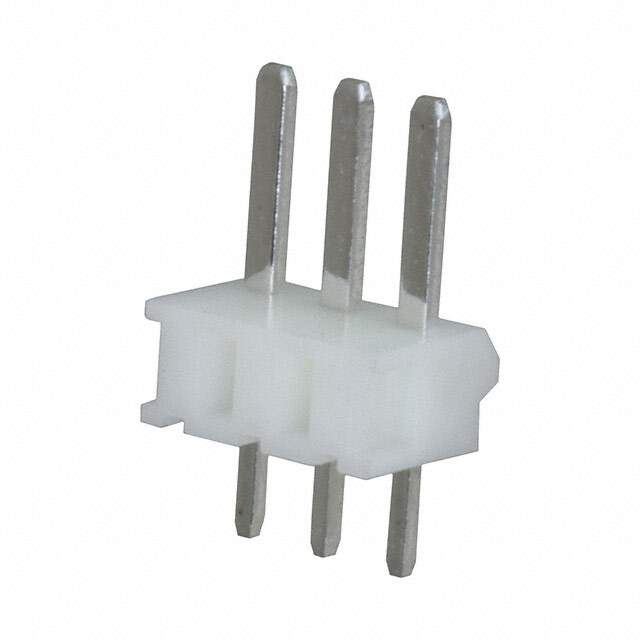

B3P-SHF-1AA(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B3P-SHF-1AA(LF)(SN)

Part No B3P-SHF-1AA(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS NH / Conn Unshrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole Reel
Datasheet
B3P-SHF-1AA(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Series NH
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Unshrouded
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.496" (12.60mm)
Insulation Height 0.126" (3.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Operating Temperature Range -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 14.9mm
Win Source Part Number 769504-B3P-SHF-1AA(LF)(SN)
Popularity Medium
Supply and Demand Status Limited
Family Name HVQ
Introduction Date July 12, 2001
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian B3P-SHF-1AA(LF)(SN) CAD Model

Description

The B3P-SHF-1AA(LF)(SN) is a 3-position header connector manufactured by JST Sales America Inc.

  • Series: NH
  • Packaging: Bulk
  • Mounting Style: Board to Cable/Wire
  • Pitch Mating: 0.098" (2.50mm)
  • Contact Finish (Mating/Post): Tin
  • Contact Material: Brass
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Height: 0.126" (3.20mm)
  • Operating Temperature: -25°C to 85°C
  • Voltage Rating: 250V
  • Current Rating: 3A
  • ECCN: EAR99
  • Estimated EOL Date: 2025
