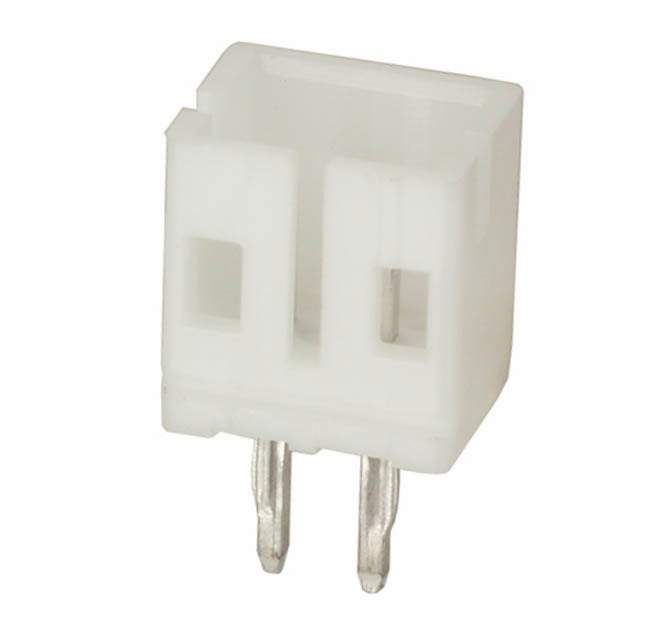

Same model may have multiple batches, images only for reference.

B2B-PH-K-S

Name: B2B-PH-K-S
Brand: JST Sales America Inc.
SKU: 802744
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B2B-PH-K-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2MM / 2.0mm pitch/Disconnectable Crimp style connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JST Sales America Inc.
Packaging	Bulk
Part Status	Obsolete (End Of Life)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Contact Length - Post	0.134" (3.40mm)
Overall Contact Length	0.333" (8.45mm)
Insulation Height	0.236" (6.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Mated Stacking Heights	8mm
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802744-B2B-PH-K-S
Ultra Librarian 3D Model	Ultra Librarian B2B-PH-K-S CAD Model

Alternative Products

Description

The B2B-PH-K-S is a 2-position male pin header connector from JST Sales America Inc.

Packaging: Bulk
Popularity: High
Shrouding: Shrouded - 4 Walls
Applications: Board to Cable/Wire
Insulation Color: Natural
Insulation Material: Polyamide (PA66), Nylon 6/6
Current Rating: 2A
Voltage Rating: 100V
