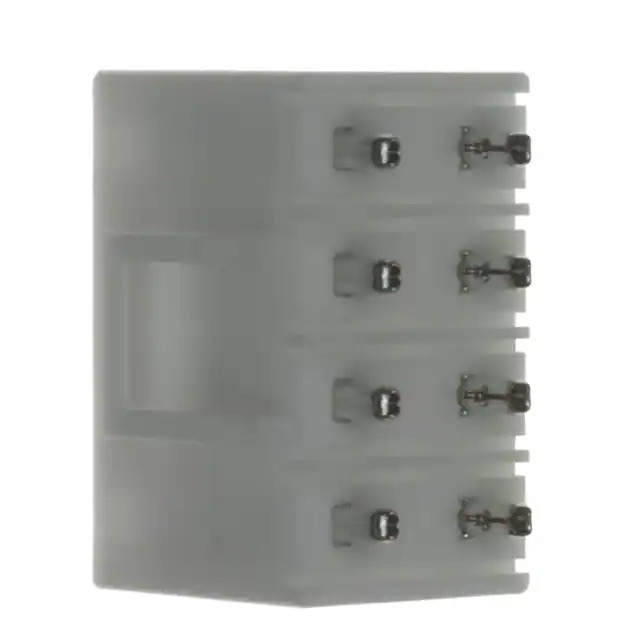

B08P-VL JST Sales America Inc.
Same model may have multiple batches, images only for reference.

B08P-VL

Part No B08P-VL
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 6.2MM / Connector Header Through Hole 8 position 0.244" (6.20mm)
Datasheet
B08P-VL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series VL
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.244" (6.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.326" (8.28mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length -
Insulation Height 0.646" (16.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6
Features -
Temperature Range - Operating -25°C ~ 90°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 20A
Voltage Rating 600V
Mated Stacking Heights 29.2mm
Contact Finish Thickness - Post -
Applications -
Base Product Number B08P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362596-B08P-VL
Ultra Librarian 3D Model Ultra Librarian B08P-VL CAD Model

Description

The 1362596-B08P-VL is a male pin header connector from JST Sales America Inc.

  • Mounting Type: Through Hole
  • Number of Positions: 8
  • Number of Rows: 2
  • Pitch: 0.244" (6.20mm)
  • Row Spacing: 0.326" (8.28mm)
  • Design: Shrouded - 4 Wall
  • Fastening Type: Latch Holder
  • Current Rating: 20A
  • Voltage Rating: 600V
  • Termination: Solder
  • Contact Finish: Tin
  • Product Status: Active
  • Packaging: Bulk
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
