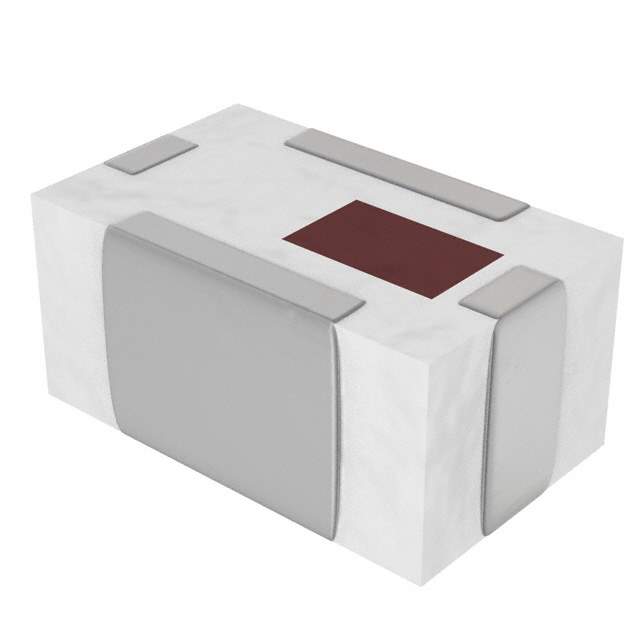

5515BP15C725E Real Image
Same model may have multiple batches, images only for reference.

5515BP15C725E

Part No 5515BP15C725E
Manufacturer Johanson Technology Inc.
Catalog RF Filters
Description RF FILTER BAND PASS 5.5GHZ 0805 / 5.5GHz Center Frequency Band Pass RF Filter (Radio Frequency) 725MHz Bandwidth 2.5dB 0805 (2012 Metric), 4 PC Pad
Datasheet
5515BP15C725E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>RF Filters
Mfr Johanson Technology Inc.
Package Tape & Reel
Frequency 5.5GHz Center
Bandwidth 725MHz
Filter Type Band Pass
Insertion Loss 2.5dB
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 4 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 712-1109-1,712-1109-2,5515BP15C725,712-1109-6
Standard Package 4,000
Win Source Part Number 1208803-5515BP15C725E
Ultra Librarian 3D Model Ultra Librarian 5515BP15C725E CAD Model

Description

The 1208803-5515BP15C725E is a band-pass filter from Johanson Technology Inc.

  • Package: 0805 (2012 Metric)
  • Pad: 4 PC Pad
  • Frequency Range: 5.5GHz center
  • Insertion Loss: 2.5dB
  • Bandwidth: 725MHz
  • Filter Type: Band-Pass
  • Height: 0.041" (1.05mm)
  • Package: Tape & Reel
  • Standard Package: 4,000
  • Ideal for: RF filters
