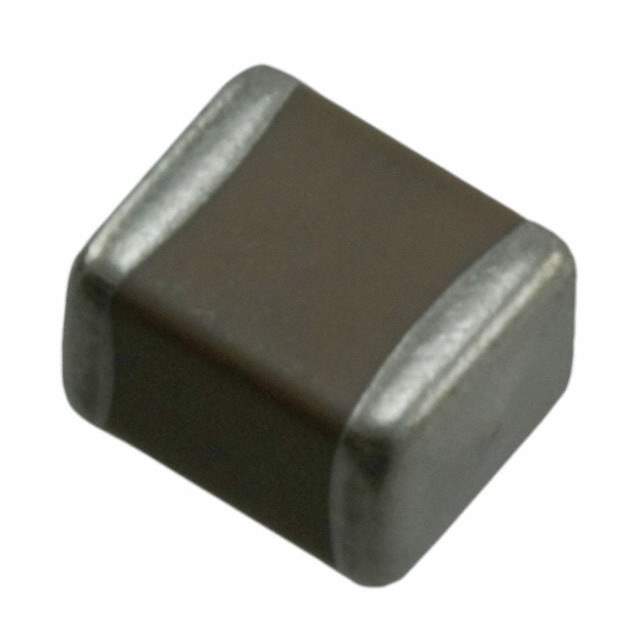

202S41W272KV4E Real Image
Same model may have multiple batches, images only for reference.

202S41W272KV4E

Part No 202S41W272KV4E
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 2700PF 2KV X7R 1210 / 2700 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1210 (3225 Metric)
Datasheet
202S41W272KV4E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Johanson Dielectrics Inc.
Package Tape & Reel
Capacitance 2700 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Dimension 0.125" L x 0.095" W (3.18mm x 2.41mm)
Thickness (Max) 0.080" (2.03mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 202S41W272KV4E-****-RC,709-1041-6,709-1041-1,709-1041-2
Standard Package 2,000
Win Source Part Number 1170453-202S41W272KV4E
Ultra Librarian 3D Model Ultra Librarian 202S41W272KV4E CAD Model

Description

The Johanson Dielectrics Inc. 202S41W272KV4E is a ceramic capacitor designed for use in general purpose electronic applications. It has a high voltage rating of 2000V and a capacitance of 2700 pF with a tolerance of ±10%. This component is surface mountable and is packaged in tape and reel. It has a low popularity rating and is at a moderate risk of being counterfeited in the open market. However, it is a reliable component for OEM parts with a temperature range of -55°C to 125°C.
