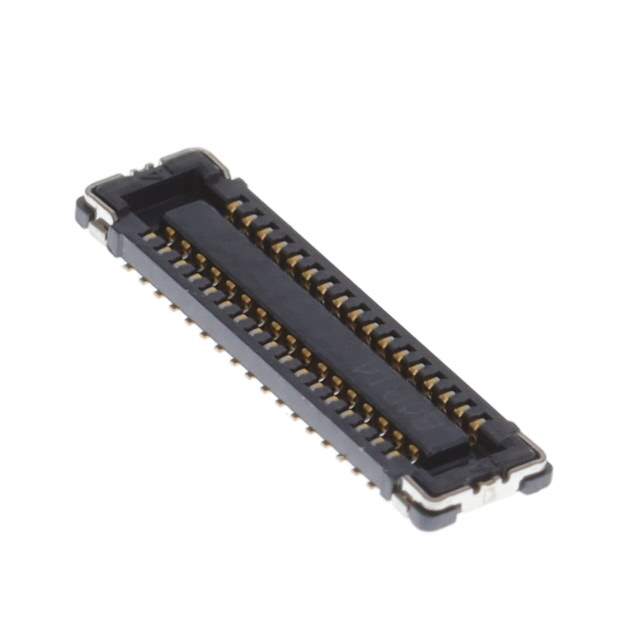

WP7B-S034VA1-R8000 Real Image
Same model may have multiple batches, images only for reference.

WP7B-S034VA1-R8000

Part No WP7B-S034VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 34POS SMD GOLD / 34 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP7
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 34
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.028" (0.71mm)
Base Product Number WP7B-S03
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names WP7B-S034VA1-R8000-ND,670-3054-6,670-3054-1,670-3054-2
Standard Package 8,000
Win Source Part Number 968376-WP7B-S034VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP7B-S034VA1-R8000 CAD Model

Description

The WP7B-S034VA1-R8000 is a center strip contacts receptacle connector from JAE Electronics.

  • Type: Rectangular connector array
  • Positions: 34
  • Pitch: 0.016 inches (0.40mm)
  • Application: Board to board mezzanine
  • Feature: Solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00μin (0.100μm)
  • Mated Stacking Height: 0.7mm
  • Height Above Board: 0.028 inches (0.71mm)
  • Mounting Type: SMD (SMT)
  • Package: Tape and reel
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
