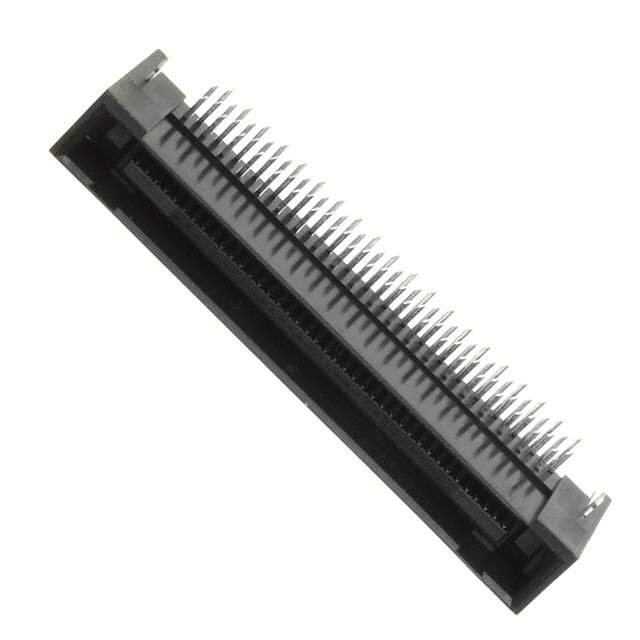

TX25-80P-LT-H1E

Name: TX25-80P-LT-H1E
Brand: JAE Electronics
SKU: 1003457
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TX25-80P-LT-H1E
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN PLUG 80POS R/A GOLD / 80 Position Connector Plug, Center Strip Contacts Through Hole, Right Angle Gold
Datasheet	TX25-80P-LT-H1E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	JAE Electronics
Series	TX25
Package	Tray
Connector Type	Plug, Center Strip Contacts
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	2
Mounting Type	Through Hole, Right Angle
Features	Board Lock
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Height Above Board	0.354" (9.00mm)
Base Product Number	TX25-80P
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	TX2580PLTH1E,670-1474
Standard Package	396
Win Source Part Number	1003457-TX25-80P-LT-H1E
Ultra Librarian 3D Model	Ultra Librarian TX25-80P-LT-H1E CAD Model

Description

The TX25-80P-LT-H1E is a rectangular connector array from JAE Electronics.

Positions: 80
Pitch: 0.050" (1.27mm)
Connector Type: Plug with center strip contacts
Rows: Two
Contact Finish: Gold with a thickness of 4.00µin (0.100µm)
Board Lock: Yes
Mounting: Through Hole, Right Angle
