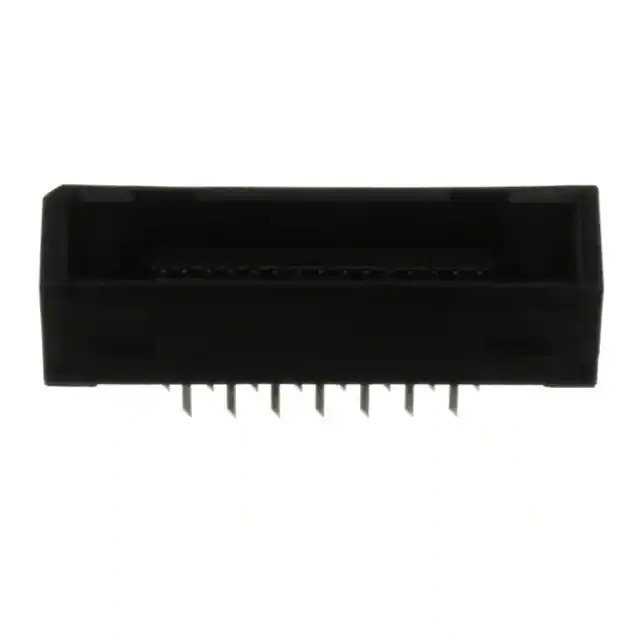

TX25-30P-6ST-H1E JAE Electronics
Same model may have multiple batches, images only for reference.

TX25-30P-6ST-H1E

Part No TX25-30P-6ST-H1E
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 30POS VERT GOLD / 30 Position Connector Plug, Center Strip Contacts Through Hole Gold
Datasheet
TX25-30P-6ST-H1E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series TX25
Package Tray
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 30
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 12mm, 16mm, 18mm
Height Above Board 0.362" (9.20mm)
Base Product Number TX25-30P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1364507-TX25-30P-6ST-H1E
Ultra Librarian 3D Model Ultra Librarian TX25-30P-6ST-H1E CAD Model

Description

The TX25-30P-6ST-H1E is a rectangular connector array manufactured by JAE Electronics. It is a plug connector with center strip contacts, designed for through-hole mounting.

  • Connector Type: Plug
  • Contact Type: Center Strip
  • Mounting Type: Through Hole
  • Number of Positions: 30
  • Number of Rows: 2
  • Pitch: 0.050" (1.27mm)
  • Height Above Board: 0.362" (9.20mm)
  • Mated Stacking Heights: 12mm, 16mm, 18mm
  • Series: TX25-30P
  • Product Status: Active
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00μin (0.100μm)
  • MSL: Level 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • ECCN: EAR99
