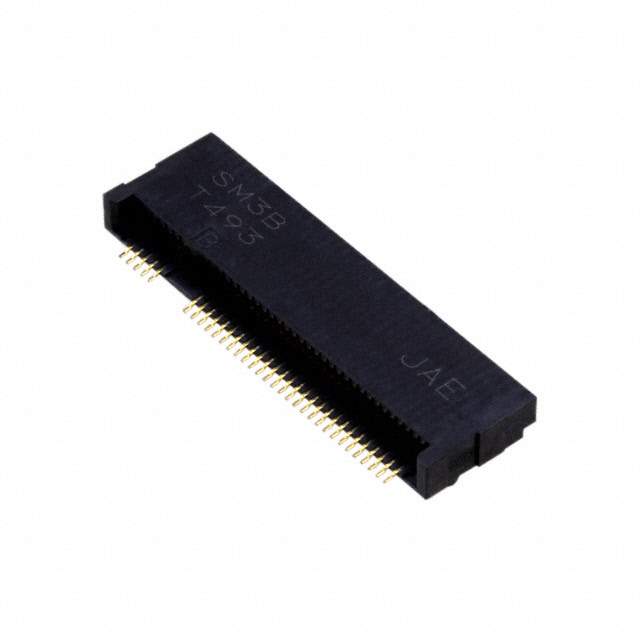

SM3ZS067U215ABR1500 Real Image
Same model may have multiple batches, images only for reference.

SM3ZS067U215ABR1500

Part No SM3ZS067U215ABR1500
Manufacturer JAE Electronics
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 67POS 0.020 / 67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr JAE Electronics
Series SM3
Package Tape & Reel
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions 67
Card Thickness 0.031" (0.79mm)
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 5.11µin (0.130µm)
Temperature Range - Operating -40°C ~ 80°C
Material - Insulation Thermoplastic
Base Product Number SM3ZS067
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-2755-1,670-2755-6,670-2755-2
Standard Package 1,500
Win Source Part Number 1093801-SM3ZS067U215ABR1500
Ultra Librarian 3D Model Ultra Librarian SM3ZS067U215ABR1500 CAD Model

Description

The JAE Electronics 1093801-SM3ZS067U215ABR1500 is a card edge connector that is used for electronic components.

  • Product Name: 1093801-SM3ZS067U215ABR1500
  • Manufacturer: JAE Electronics
  • Series: SM3
  • Positions: 67
  • Pitch: 0.020 inches (0.50mm)
  • Features: Board Guide
  • Gender: Female
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.11μin (0.130μm)
  • Packaging: Tape and Reel
  • Standard Package: 1,500
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Mounting Type: Surface Mount, Right Angle
  • Temperature Range: -40°C to 80°C
