Same model may have multiple batches, images only for reference.

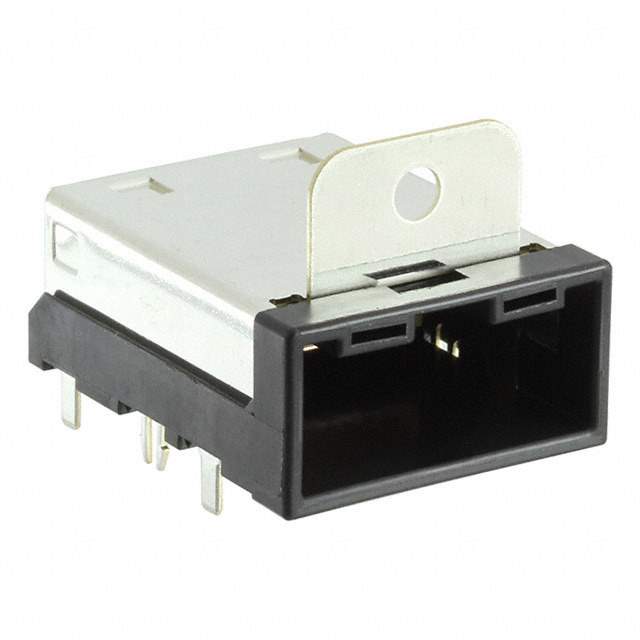

MX50019NQ1 Real Image
Same model may have multiple batches, images only for reference.

MX50019NQ1

Part No MX50019NQ1
Manufacturer JAE Electronics
Catalog Pluggable Connectors
Description CONN DATA PLUG RCPT 19POS SLD RA / 19 Position Data Plug Receptacle Connector Solder Through Hole, Right Angle
Datasheet
MX50019NQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr JAE Electronics
Series MX50
Package Tray
Connector Style Receptacle
Connector Type Data Plug
Number of Positions 19
Mounting Type Through Hole, Right Angle
Termination Solder
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Base Product Number MX50019N
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1339481-MX50019NQ1
Ultra Librarian 3D Model Ultra Librarian MX50019NQ1 CAD Model

Description

The JAE Electronics MX50019NQ1 pluggable connector assembly is designed for use in pluggable connectors.

  • Series: MX50
  • Positions: 19
  • Features: Board Guide and Board Lock
  • Connector Type: Data Plug
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 11.8µin (0.30µm)
  • Package: Tray
  • Standard Package: 500
  • Mounting Type: Through Hole
  • Orientation: Right Angle
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Manufacturer: JAE Electronics
