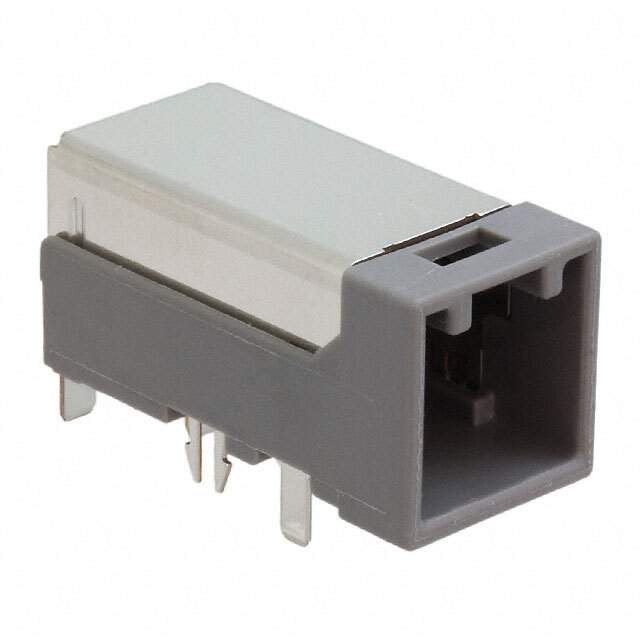

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 4 (2 + 1 Power + 1 Ground) position 0.079" (2.00mm)
Manufacturer JAE Electronics
Series MX49
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name MX49004N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -MX49004NQ1, 670-2707
Quantity per package 960
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 886643-MX49004NQ1
Ultra Librarian 3D Model Ultra Librarian MX49004NQ1 CAD Model

Description

The MX49004NQ1 from JAE Electronics is a through hole, right angle connector header with 4 positions (2 + 1 Power + 1 Ground) and a pitch of 0.079 inches (2.00mm).

  • Series: MX49
  • Mounting Type: Through Hole
  • Mounting Angle: Right Angle
  • Number of Positions: 4 (2 + 1 Power + 1 Ground)
  • Pitch: 0.079 inches (2.00mm)
  • Package: Tray
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
