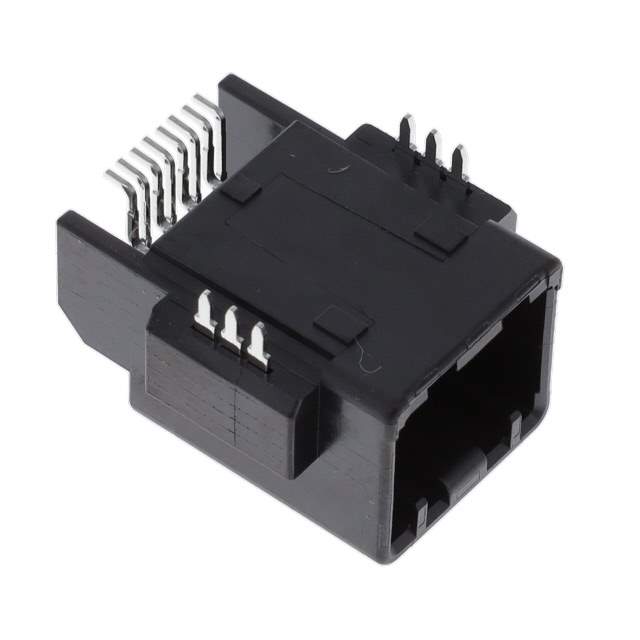

MX34R08HF4T Real Image
Same model may have multiple batches, images only for reference.

MX34R08HF4T

Part No MX34R08HF4T
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 8POS 2.2MM / Connector Header Surface Mount, Right Angle 8 position 0.087" (2.20mm)
Datasheet
MX34R08HF4T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34R
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Insulation Height 0.543" (13.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Black
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34R08H
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-3111
Standard Package 960
Win Source Part Number 990721-MX34R08HF4T
Ultra Librarian 3D Model Ultra Librarian MX34R08HF4T CAD Model

Description

The JAE Electronics MX34R08HF4T is a rectangular connector header.

  • Positions: 8
  • Pitch: 0.087 inches
  • Pins: Male
  • Solder Retention: Yes
  • Mounting Type: Surface mount
  • Package: Tray
  • Series: MX34R
  • Application: Automotive
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
