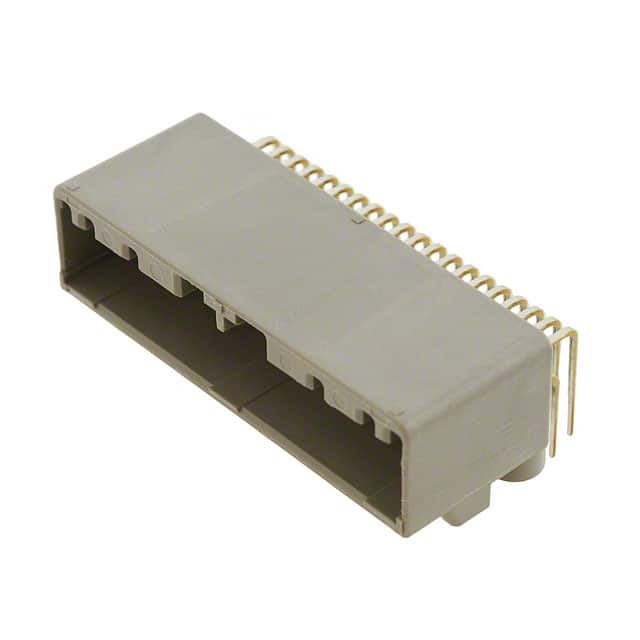

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Box
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.626" (15.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34040N
Standard Package 640 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848526-MX34040NF2
Ultra Librarian 3D Model Ultra Librarian MX34040NF2 CAD Model

Description

The MX34 series from JAE Electronics offers a versatile solution for rectangular connector headers. The MX34040NF2 is a 40-position header with male pins.

  • Positions: 40
  • Pin Gender: Male
  • Features: Mounting flange and a locking ramp fastening type
  • Contact Material: Brass
  • Contact Finish (Mating): Tin
  • Post Contact Finish: Tin
  • Mounting Type: Through hole, right angle
  • Design: Shrouded 4-wall
  • Pitch: 0.087" (2.20mm)
  • Current Rating: 3A
  • Applications: Automotive
  • Package: 640 pcs
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
