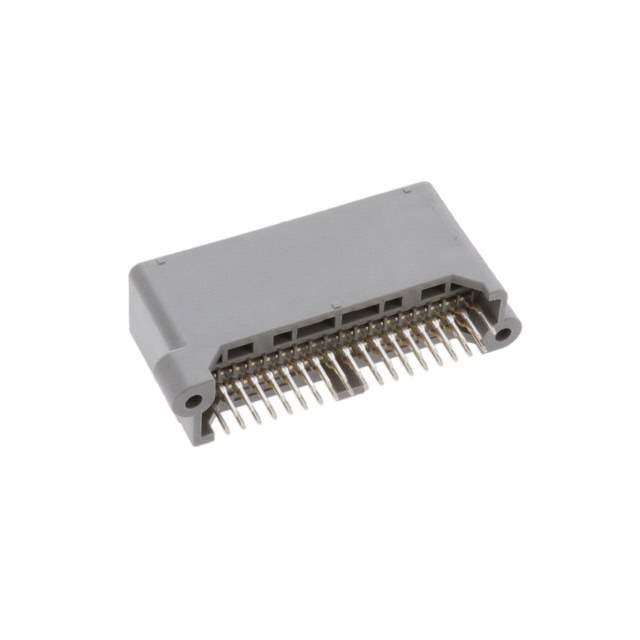

MX34036UF2 Real Image
Same model may have multiple batches, images only for reference.

MX34036UF2

Part No MX34036UF2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER VERT 36POS 2.2MM / Connector Header Through Hole 36 position 0.087" (2.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer JAE Electronics
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 36
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.925" (23.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Mounting Flange
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34036U
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number MX34036UF2-ND,670-3024
Standard Package 560
Win Source Part Number 1334125-MX34036UF2
Ultra Librarian 3D Model Ultra Librarian MX34036UF2 CAD Model

Description

The JAE Electronics 1334125-MX34036UF2 is a 36 position mounting flange header connector with male pin contact type and solder termination.

  • Mounting Style: Board to Cable/Wire
  • Pitch: 0.087" (2.20mm)
  • Contact Finish: Tin
  • Voltage Rating: Not Specified
  • Current Rating: 3A
  • Supply and Demand Status: Limited
  • Standard Package Quantity: 560
