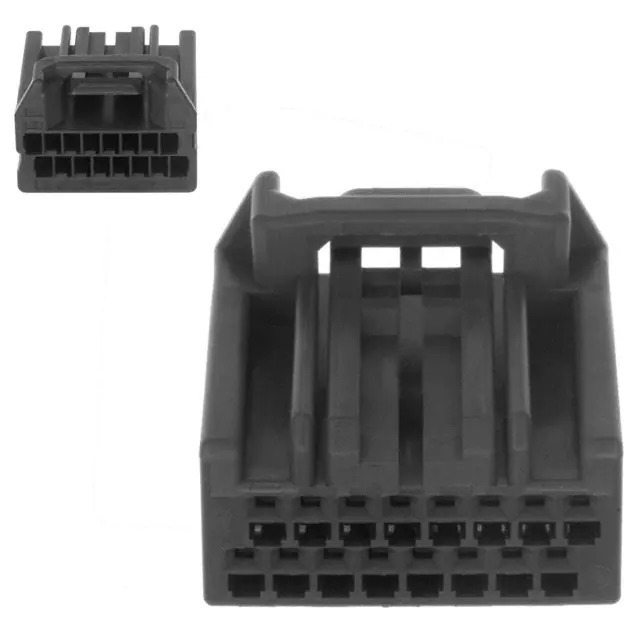

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series MX34
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 16
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Gray
Features -
Temperature Range - Operating -40°C ~ 85°C
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1379274-MX34016SF1
Ultra Librarian 3D Model Ultra Librarian MX34016SF1 CAD Model

Description

The MX34016SF1 is a rectangular connector housing manufactured by JAE Electronics.

  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Positions: 16
  • Rows: 2
  • Pitch: 0.087" (2.20mm)
  • Row Spacing: 0.118" (3.00mm)
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Color: Gray
  • Series: MX34
  • Product Status: Active
  • Packaging: Tray
  • Operating Temperature: -40°C to 85°C
  • HTSUS Code: 8538.90.6000
  • ECCN Code: EAR99
  • Contacts Included: No
