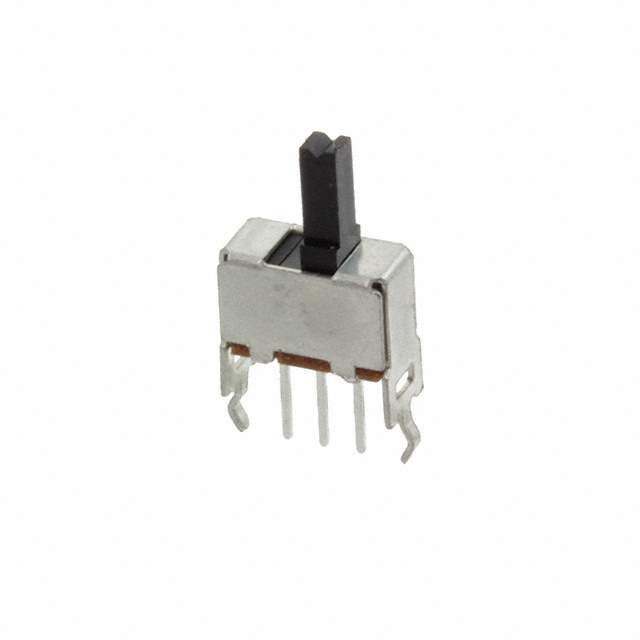

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr E-Switch
Series EG
Package Bulk
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 6.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 2.00mm
Operating Force 250gf
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names P040044,Q515299A
Standard Package 800
Win Source Part Number 1201014-EG1249
Ultra Librarian 3D Model Ultra Librarian EG1249 CAD Model

Description

The EG series slide switch from E-Switch is a SPDT circuit switch with a non-shorting (BBM) contact timing.

  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Voltage: 12 V DC
  • Current Rating: 100mA (DC)
  • Mounting Type: Through-Hole
  • Actuator Type: 6.00mm Standard
  • Switch Travel: 2.00mm
  • Operating Force: 250gf
  • Switch Function: On-On
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Temperature Range: -20°C to 70°C
  • Packaging: Bulk (800 Units)
