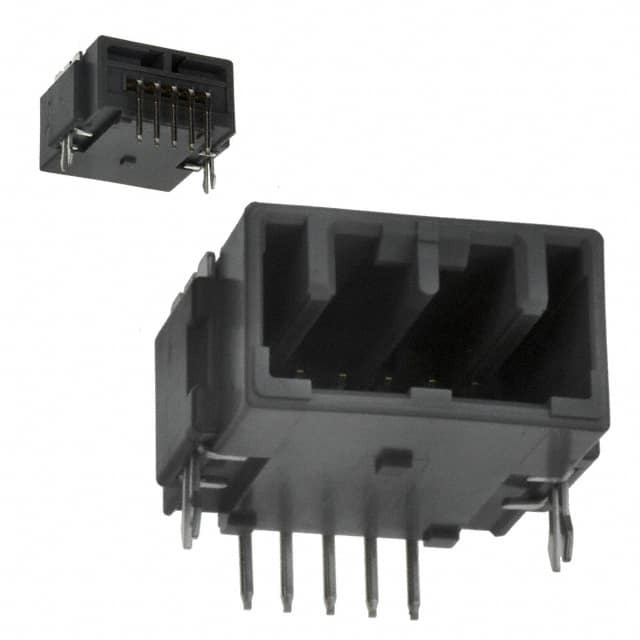

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series MX34
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.421" (10.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 85°C
Insulation Color Gray
Current Rating (Amps) 3A
Applications Automotive
Base Product Number MX34005N
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848995-MX34005NF1
Ultra Librarian 3D Model Ultra Librarian MX34005NF1 CAD Model

Description

The MX34005NF1 is a male pin header connector from JAE Electronics. It is part of the MX34 series and features 5 positions with a board lock for secure attachment.

  • Series: MX34
  • Positions: 5
  • Board Lock: Yes
  • Application: Automotive
  • Pitch: 0.087" (2.20mm)
  • Mounting Type: Through-hole, right-angle
  • Package: Tube
  • Contact Finish: Tin
  • Material: Brass
  • Temperature Range: -40°C to 85°C
  • Current Rating: 3A
  • Product Status: Active
  • MSL: 1 (Unlimited)
