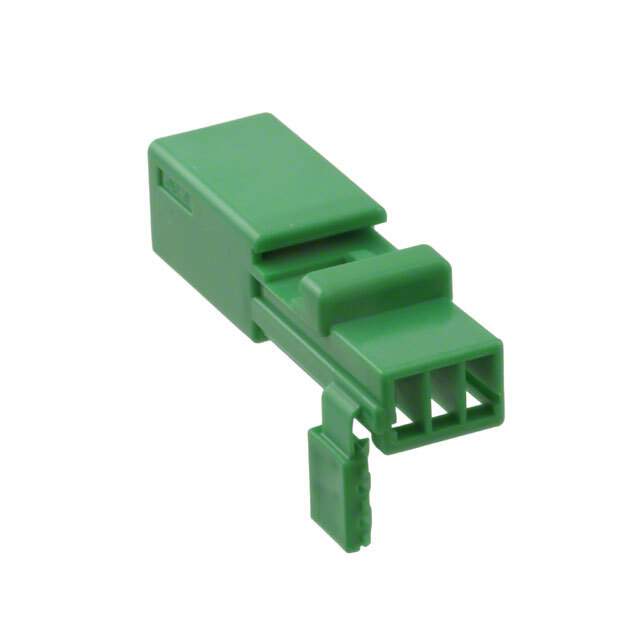

IL-AG9-3P-S3C1 Real Image
Same model may have multiple batches, images only for reference.

IL-AG9-3P-S3C1

Part No IL-AG9-3P-S3C1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG HSG 3POS 2.50MM / 3 Rectangular Connectors - Housings Plug Green 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer JAE Electronics
Packaging Bulk
Connector Type Plug
Contact Type Male Pin
Number of Positions 3
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Green
Note Contacts Not Included
Base Product Number IL-AG9-3
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 670-2215,-IL-AG9-3P-S3C1,ILAG93PS3C1
Standard Package 1,500
Win Source Part Number 1334111-IL-AG9-3P-S3C1
Ultra Librarian 3D Model Ultra Librarian IL-AG9-3P-S3C1 CAD Model

Description

The JAE Electronics IL-AG9-3 series connector is a 3-position plug connector with a male pin contact type.

  • Series: IL-AG9-3
  • Positions: 3
  • Connector Type: Plug
  • Contact Type: Male Pin
  • Pitch: 0.098" (2.50mm)
  • Contact Termination: Crimp
  • Contact Material: Copper Alloy
  • Material Flammability Rating: UL94 V-0
  • Mounting: Surface Mount
  • Mounting Type: Free Hanging (In-Line)
  • RoHS Compliant: Yes
