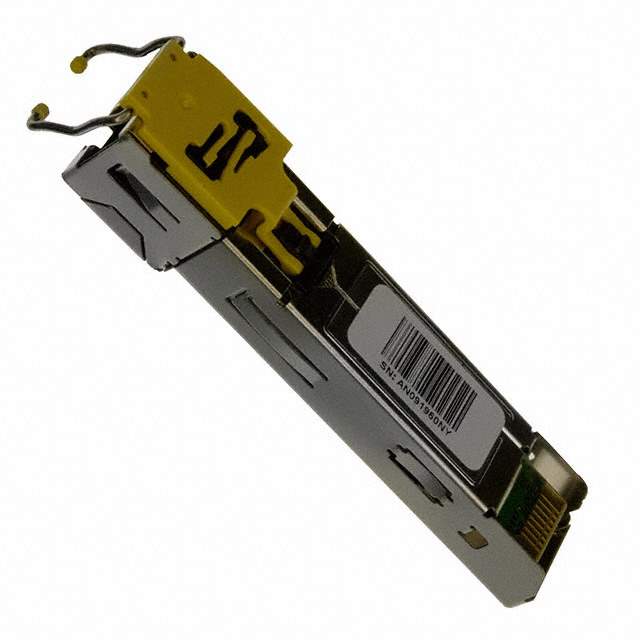

The ABCU-5710RZ is a small form-factor pluggable (SFP) transceiver module manufactured by Broadcom. It is designed for use in high-speed data communication applications, particularly in Gigabit Ethernet and Fibre Channel systems. This transceiver enables reliable and efficient data transmission over optical fiber cables.

Applications

• Gigabit Ethernet switches and routers
• Fibre Channel storage area networks (SANs)
• Data centers
• High-performance computing (HPC)
• Telecommunications infrastructure

Features

• SFP form factor
• Operating data rate up to 1.25 Gbps
• 1310nm Fabry-Perot (FP) laser transmitter
• PIN photodiode receiver
• Distance up to 10km over single-mode fiber (SMF)
• Single 3.3V power supply
• Hot-pluggable
• Digital Diagnostic Monitoring (DDM) function
• Compliant with SFP MSA standards
• RoHS compliant

Benefits

• High-speed data transmission: Supports data rates up to 1.25 Gbps, enabling fast and reliable communication.
• Long-distance reach: Capable of transmitting data up to 10km over single-mode fiber, suitable for extended network topologies.
• Easy installation and maintenance: Hot-pluggable design allows for easy installation and replacement without interrupting system operation.
• Real-time monitoring: Digital Diagnostic Monitoring (DDM) provides real-time information on transceiver performance, facilitating proactive maintenance.
• Standard compliance: Compliant with SFP MSA standards, ensuring interoperability with other SFP-compatible devices.
• Environmentally friendly: RoHS compliant, minimizing the environmental impact of hazardous substances.

Additional Details

The ABCU-5710RZ transceiver module utilizes a 1310nm Fabry-Perot (FP) laser transmitter and a PIN photodiode receiver to achieve reliable data transmission over single-mode fiber. The module operates on a single 3.3V power supply and features a hot-pluggable design for easy installation and maintenance. The Digital Diagnostic Monitoring (DDM) function allows users to monitor key transceiver parameters, such as optical power, temperature, and supply voltage, in real-time. This transceiver is commonly used in Gigabit Ethernet and Fibre Channel applications requiring long-distance data transmission.
