Same model may have multiple batches, images only for reference.

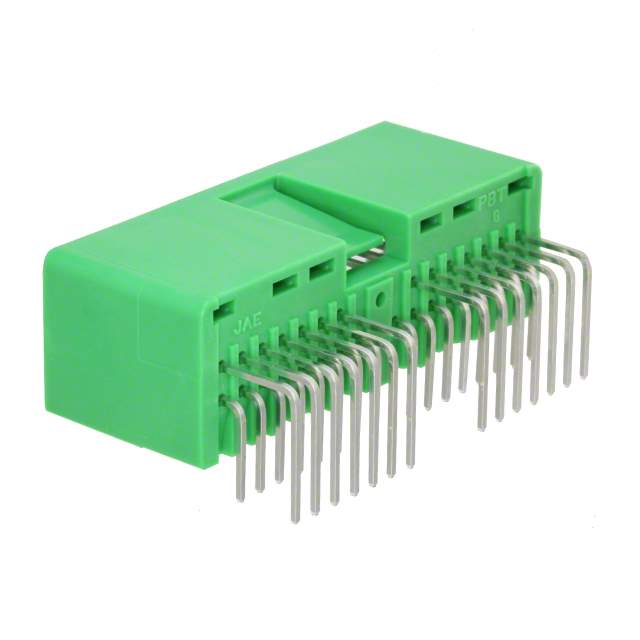

IL-AG5-30P-D3L2 Real Image
Same model may have multiple batches, images only for reference.

IL-AG5-30P-D3L2

Part No IL-AG5-30P-D3L2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PIN HEADER 2.5MM 30POS R/A / Conn Shrouded Header HDR 30 POS 2.5mm Solder RA Thru-Hole Automotive
Datasheet
IL-AG5-30P-D3L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Series IL-AG5
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 30
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.331" (8.40mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.591" (15.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Board Guide
Operating Temperature Range -40°C ~ 85°C
Insulation Color Green
Current Rating 3A per Contact
Applications Automotive
Win Source Part Number 778278-IL-AG5-30P-D3L2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 420
Family Name IL-AG5
Introduction Date July 17, 2000
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IL-AG5-30P-D3L2 CAD Model

Description

The JAE Electronics IL-AG5-30P-D3L2 is a male pin header connector from JAE Electronics and is part of the IL-AG5 series.

  • Positions: 30
  • Series: IL-AG5
  • Shrouded: 4 Wall
  • Mounting: Through Hole, Right Angle
  • Pitch-Mating: 0.098 inches (2.50mm)
  • Row Spacing-Mating: 0.118 inches (3.00mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Temperature Range: -40°C to 85°C
  • Current Rating: 3A per contact
