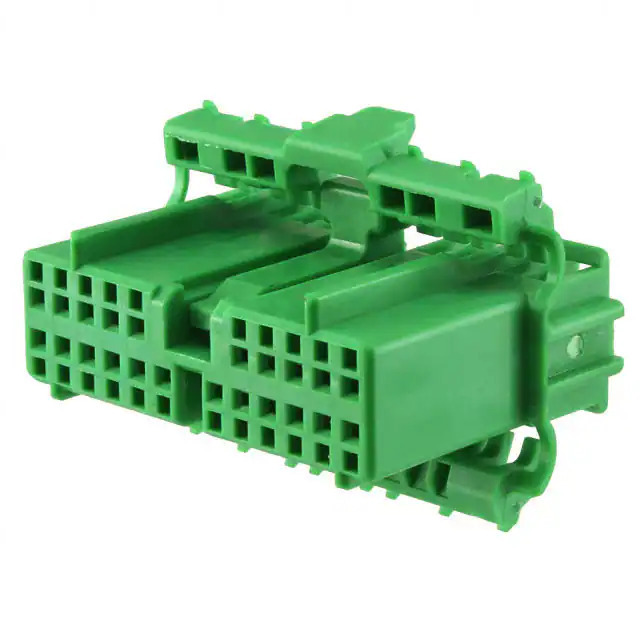

IL-AG5-22S-D3C1 JAE Electronics
Same model may have multiple batches, images only for reference.

IL-AG5-22S-D3C1

Part No IL-AG5-22S-D3C1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT HSG 22POS 2.50MM
Datasheet
IL-AG5-22S-D3C1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr JAE Electronics
Series IL-AG5
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 22
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Green
Features -
Temperature Range - Operating -40°C ~ 85°C
Note Contacts Not Included
Base Product Number IL-AG5-2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365888-IL-AG5-22S-D3C1
Ultra Librarian 3D Model Ultra Librarian IL-AG5-22S-D3C1 CAD Model

Description

The IL-AG5-22S-D3C1 is a rectangular connector housing manufactured by JAE Electronics.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 22
  • Number of Rows: 2
  • Pitch: 0.098" (2.50mm)
  • Row Spacing: 0.118" (3.00mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Color: Green
  • Series: IL-AG5
  • Contacts Included: No
  • Product Status: Active
  • Packaging: Bulk
  • Operating Temperature: -40°C to 85°C
  • HTSUS Code: 8536.69.8000
  • ECCN Code: EAR99
