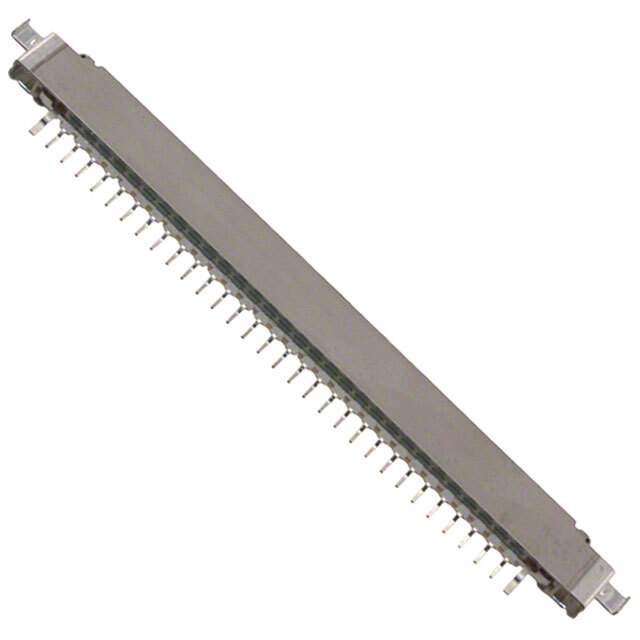

Same model may have multiple batches, images only for reference.

FI-XB30SL-HF10-R3000

Name: FI-XB30SL-HF10-R3000
Brand: JAE Electronics
SKU: 774585
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FI-XB30SL-HF10-R3000
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 1MM 30POS EDGE MNT / Conn Wire to Board HDR 30 POS T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JAE Electronics
Series	FI-X
Packaging	Reel package
Part Status	Obsolete(EOL)
Connector Type	Receptacle
Contact Type	Non-Gendered
Style	Board to Cable/Wire
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	1
Mounting	Board Cutout, Bottom Mount, Surface Mount, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	12μin (0.30μm)
Insulation Color	Beige
Operating Temperature Range	-40°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Grounding Pins, Shielded, Solder Retention
Current Rating	1A per Contact
Voltage Rating	200V
Applications	General
Insulation Material	Plastic
Contact Material	Copper Alloy
Win Source Part Number	774585-FI-XB30SL-HF10-R3000
Popularity	Medium
Supply and Demand Status	Limited
Family Name	FI
Introduction Date	December 24, 2008
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian FI-XB30SL-HF10-R3000 CAD Model

Description

The JAE Electronics FI-XB30SL-HF10-R3000 is a 30 position receptacle connector that is designed for board to cable/wire applications.

Series: FI-X
Win Source Part Number: 774585-FI-XB30SL-HF10-R3000
Shielding: yes
Grounding Pins: yes
Fastening Type: friction lock
Mounting: surface mount, bottom mount, right angle
Current Rating: 1A @ contact
Voltage Rating: 200V
Category: Connectors, Interconnects
Popularity: medium
Status: obsolete (EOL)
Supply and Demand Status: limited
