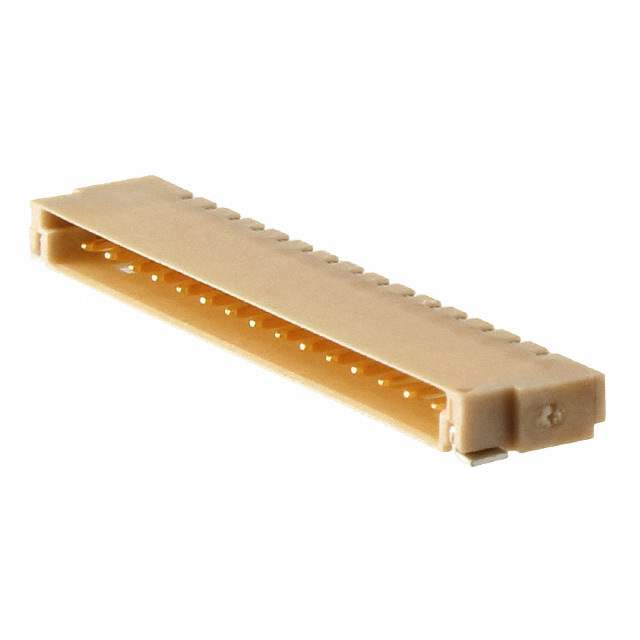

FI-S15P-HFE Real Image
Same model may have multiple batches, images only for reference.

FI-S15P-HFE

Part No FI-S15P-HFE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 1.25MM 15POS SMD R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 15
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.071" (1.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin or Tin-Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Temperature Range - Operating -40°C to 80°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 1A per Contact
Voltage Rating 200V
Mated Stacking Heights 1.8mm
Win Source Part Number 132266-FI-S15P-HFE
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian FI-S15P-HFE CAD Model

Description

The JAE Electronics 132266-FI-S15P-HFE is a 15-position male pin receptacle connector.

  • Positions: 15
  • Fastening Type: Friction Lock
  • Style: Board to Cable/Wire
  • Pitch: 0.049 inches (1.25mm)
  • Voltage Rating: 200V
  • Current Rating: 1A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 80°C
  • Mounting: Surface Mount, Right-Angle
  • Shrouded: 4 Walls
  • Insulation Height: 0.071 inches (1.80mm)
  • Supply and Demand Status: Limited
