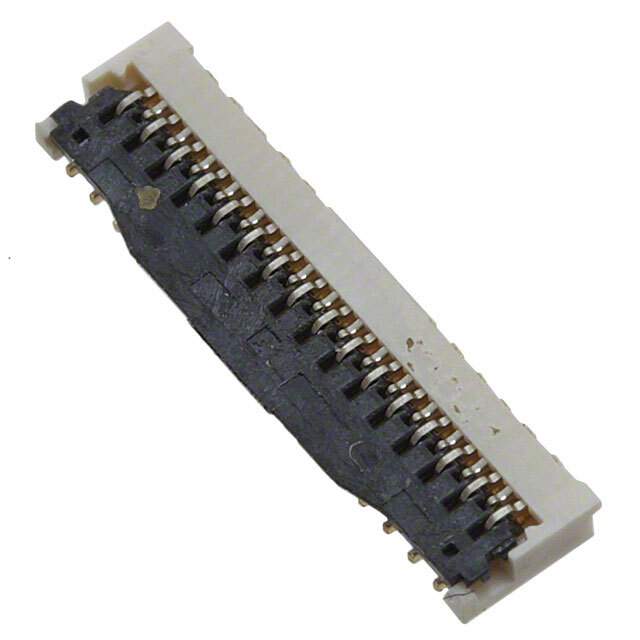

FB10S031JA2R6000 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JAE Electronics
Series FB10
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 31
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.035" (0.88mm)
Locking Feature Flip Lock
Cable End Type Tabbed or Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Plastic
Actuator Material Plastic
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Current Rating (Amps) 0.35A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color White
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 670-2663-2,670-2663-1,670-2663-6
Standard Package 6,000
Win Source Part Number 1128984-FB10S031JA2R6000
Ultra Librarian 3D Model Ultra Librarian FB10S031JA2R6000 CAD Model

Description

The JAE Electronics 1128984-FB10S031JA2R6000 is a 31-position FFC/FPC connector with a pitch of 0.012" (0.30mm).

  • Positions: 31
  • Pitch: 0.012" (0.30mm)
  • Feature: Zero Insertion Force (ZIF)
  • Contacts: Bottom
  • Contact Material: Phosphor Bronze with Gold Finish
  • Voltage Rating: 50V
  • Flat Flex Type: FPC
  • FFC/FCB Thickness: 0.20mm
  • Locking Feature: Flip Lock
  • Cable End Type: Tabbed or Tapered
  • Housing Material: Plastic
  • Actuator Material: Plastic
  • Compliance: RoHS Compliant
  • Current Rating: 0.35A
  • Mounting: Surface Mount, Right Angle
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tape and Reel
  • Standard Package: 6,000
