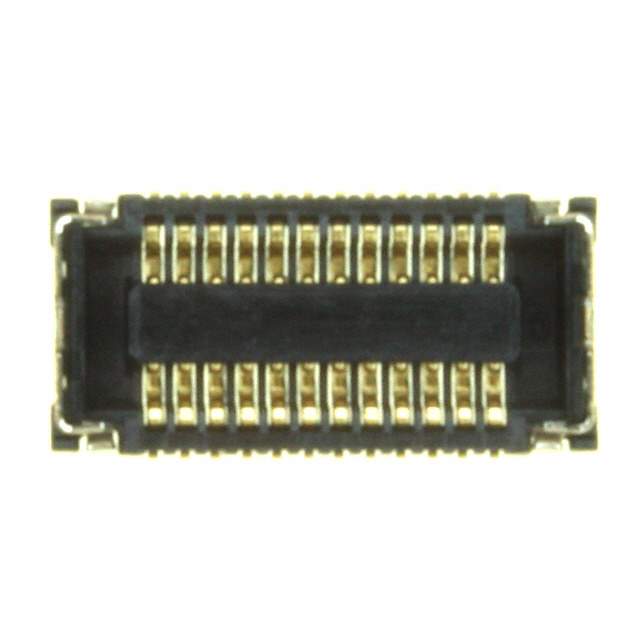

AA03-S024VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

AA03-S024VA1-R6000

Part No AA03-S024VA1-R6000
Manufacturer JAE Electronics
Catalog Custom Parts (0 - A)
Description Conn Rcpt 0.4MM 24POS Dual SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Flammability Rating UL94 V-0
Height 150 µm
Housing Color Black
Housing Material Plastic
Lead Free Lead Free
Lead Pitch 400 µm
Length 7.1 mm
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Packaging Cut Tape
RoHS Compliant
Width 3.4 mm
Win Source Part Number 1128920-AA03-S024VA1-R6000
Categories Custom Parts
Manufacturer JAE Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AA03-S024VA1-R6000 CAD Model

Description

The JAE Electronics 1128920-AA03-S024VA1-R6000 is a 24 position, 2 row connector designed for use in a variety of applications.

  • Positions: 24
  • Rows: 2
  • Contact Plating: Gold
  • Housing Material: Plastic
  • Housing Color: Black
  • Compliance: Lead-free and RoHS compliant
  • Packaging: Cut Tape
  • Lead Pitch: 400 µm
  • Flammability Rating: UL94 V-0
  • Supply and Demand Status: Limited
