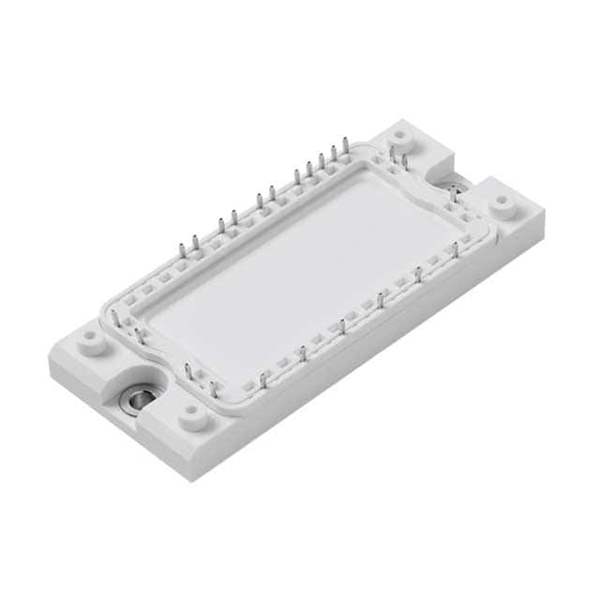

MIXA40WB1200TED
Same model may have multiple batches, images only for reference.

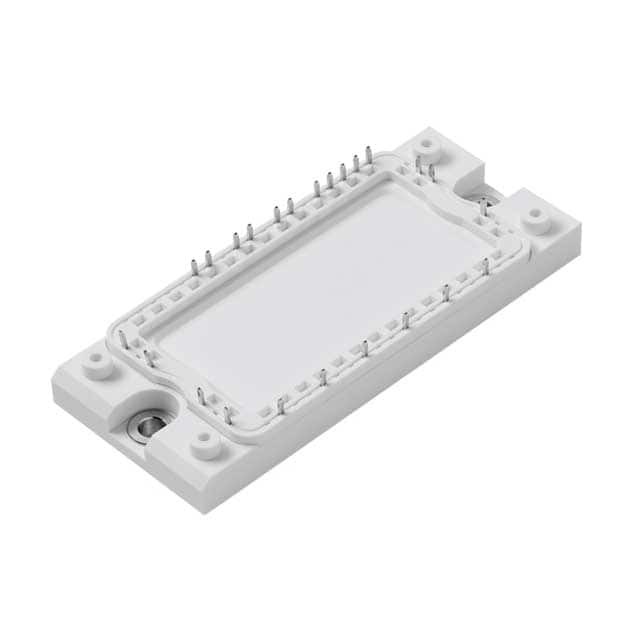

MIXA40WB1200TED

Part No MIXA40WB1200TED
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 60A 195W E2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr IXYS
Package Box
Product Status Active
IGBT Type PT
Configuration Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 60 A
Power - Max 195 W
Vce(on) (Max) @ Vge, Ic 2.1V @ 15V, 35A
Current - Collector Cutoff (Max) 2.1 mA
Input Three Phase Bridge Rectifier
NTC Thermistor Yes
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case E2
Supplier Device Package E2
Base Product Number MIXA40
Standard Package 6 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 846782-MIXA40WB1200TED
Ultra Librarian 3D Model Ultra Librarian MIXA40WB1200TED CAD Model

Description

The MIXA40WB1200TED is an IGBT Module designed for use in Discrete Semiconductor Products, specifically in Transistors - IGBTs - IGBT Modules.

  • Power - Max: 195 W
  • Voltage - Collector Emitter Breakdown (Max): 1200 V
  • Current - Collector (Ic) (Max): 60 A
  • Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 35A
  • Configuration: Three Phase Inverter with Brake
  • Mounting Type: Chassis Mount
