Products specifications

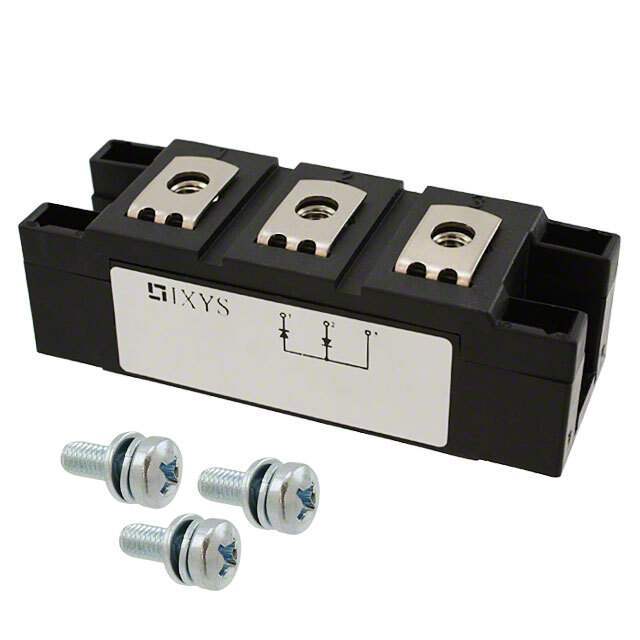

Win Source Part Number WS1307229-MEE300-06DA
Category Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Manufacturer IXYS
Packaging Box
Part Status Active
Diode Configuration 1 Pair Series Connection
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 304A
Voltage - Forward (Vf) (Max) @ If 1.36 V @ 260 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Ultra Librarian 3D Model Ultra Librarian MEE300-06DA CAD Model

Description

  • International standard package with DCB ceramic base plate
  • Planar passivated chips
  • Short recovery time
  • Low switching losses
  • Soft recovery behaviour
  • High reliability circuit operation
  • Low voltage peaks for reduced protection circuits
  • Low noise switching
  • Low losses
