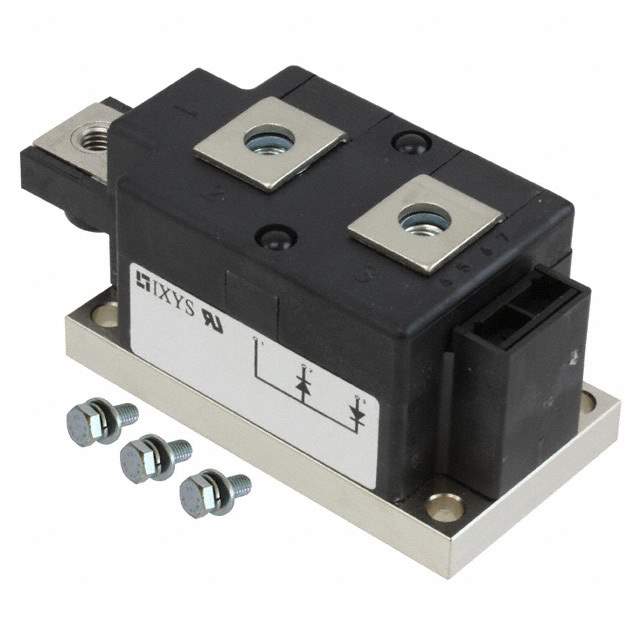

MDD312-16N1 Real Image
Same model may have multiple batches, images only for reference.

MDD312-16N1

Part No MDD312-16N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 310A Y1-CU / Diode Array 1 Pair Series Connection Standard 1600 V 310A Chassis Mount Y1-CU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer IXYS
Packaging Bulk
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) (per Diode) 310A
Voltage - Forward (Vf) (Max) @ If 1.32 V @ 600 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 30 mA @ 1600 V
Mounting Chassis Mount
Case / Package Y1-CU
Supplier Device Package Y1-CU
Base Product Number MDD312
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MDD31216N1
Standard Package 3
Win Source Part Number 1325115-MDD312-16N1
Ultra Librarian 3D Model Ultra Librarian MDD312-16N1 CAD Model

Description

The IXYS MDD312-16N1 is a standard diode pair series connection designed for use in rectifier arrays.

  • Manufacturer: IXYS
  • Maximum Reverse Voltage: 1600V
  • Forward Voltage: 1.32V @ 600A
  • Diode Configuration: 1 Pair Series Connection
  • Average Rectified Current: 310A
  • Package: Y1-CU case
  • RoHS3: Compliant
