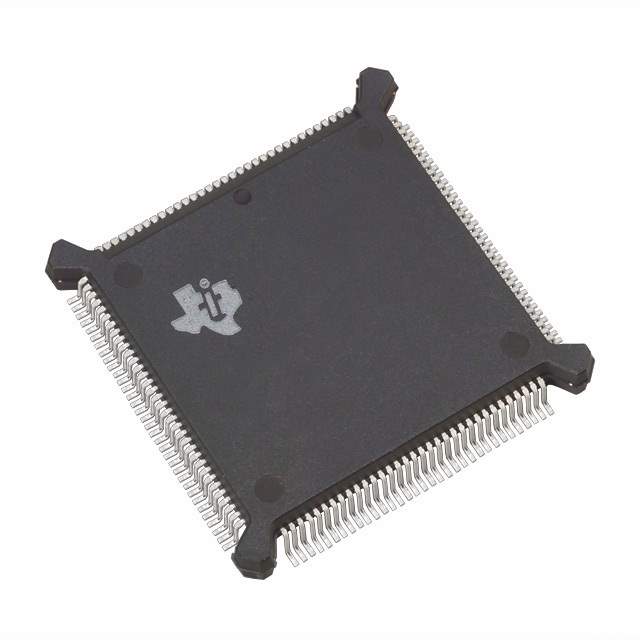

The TMS320F240PQ is a highly integrated Digital Signal Processor (DSP) from Texas Instruments, specifically designed for motor control applications. It is part of the TMS320F2xx series, which is renowned for its performance and efficiency in processing algorithms that demand high-speed numerical computations. This DSP controller is ideal for a wide range of applications, including industrial control, automotive, and power management systems.

Key Features

• High-Performance Static CMOS Technology: The TMS320F240PQ operates with a 20-ns instruction cycle time at a 50-MHz clock rate, delivering high-speed processing capabilities.
• On-Chip Memory: It comes equipped with 16K words of Flash memory and 544 words of data RAM, which facilitates efficient program execution and data storage.
• Flexible Peripheral Set: This DSP controller includes a variety of peripherals such as a quadrature encoder pulse (QEP) circuit, two serial ports, a watchdog timer, and a 16-bit timer.
• PWM Outputs: Six pulse-width modulation (PWM) outputs provide precise control for motor and power inverter applications.
• Robust Interrupt Structure: With 13 prioritized interrupt vectors, the TMS320F240PQ ensures responsive and reliable system control.
• Advanced I/O: A total of 29 general-purpose I/O pins are available, making this DSP controller highly versatile in interfacing with other circuitry.

Applications

The TMS320F240PQ is adept at handling complex algorithms and control tasks, making it suitable for:

• AC and DC motor control
• Robotics
• Power supplies and converters
• Automotive engine and transmission control
• Industrial automation systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable components. The TMS320F240PQ is no exception, with its robust design and thorough testing to ensure it meets the stringent requirements of industrial and automotive applications.

For developers and engineers looking for a powerful DSP controller capable of precise control and efficient signal processing, the TMS320F240PQ provides a compelling solution with its rich feature set and proven performance.
