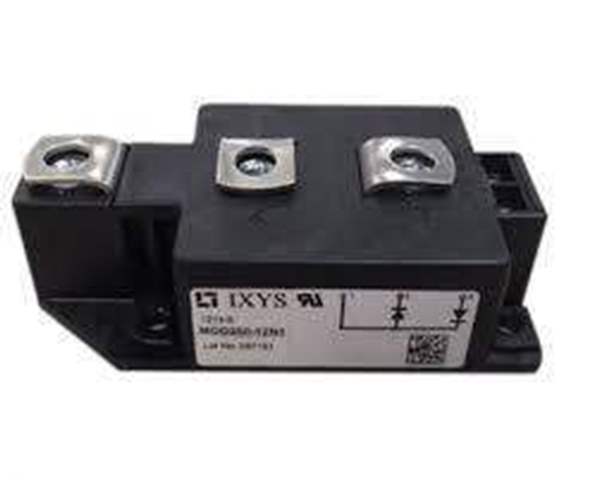

MDD310-12N1 IXYS
Same model may have multiple batches, images only for reference.

MDD310-12N1

Part No MDD310-12N1
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.2KV 305A Y2-DCB
Datasheet
MDD310-12N1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000731-MDD310-12N1
Manufacturer IXYS
Category Discrete Semiconductor Products -Diodes Rectifiers -Diode Arrays
Package Box
Package / Case Y2-DCB
Supplier Device Package Y2-DCB
Mounting Type Chassis Mount
Operating Temperature - Junction -40°C ~ 150°C
Speed Standard Recovery >500ns, > 200mA (Io)
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 600 A
Current - Average Rectified (Io) (per Diode) 305A
Ultra Librarian 3D Model Ultra Librarian MDD310-12N1 CAD Model

Description

The IXYS Diode Array is a discrete semiconductor product that is designed to be used in rectifiers. The diode array is a standard recovery type that has a speed of over 500ns and can handle a current of over 200mA (Io). The diode array comes in a box package and has a voltage forward (Vf) of 1.2V at 600A. The operating temperature range of the diode array is -40°C to 150°C. The diode array has an average rectified current (Io) of 305A and is mounted using a chassis mount. The package/case used for the diode array is Y2-DCB, and the supplier device package is also Y2-DCB.
