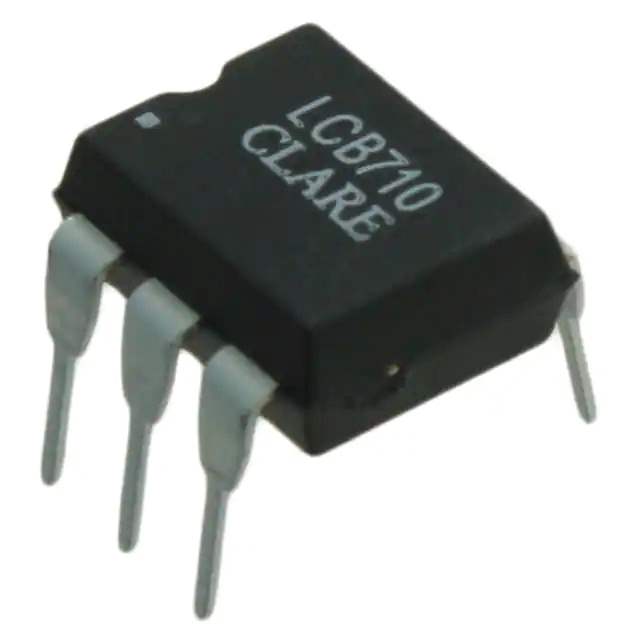

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series LCB, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NC (1 Form B)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 350 V
Load Current 120 mA
On-State Resistance (Max) 35 Ohms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 177160-LCB110
Ultra Librarian 3D Model Ultra Librarian LCB110 CAD Model

Description

The LCB110 is a solid state relay from the LCB series by IXYS.

  • Manufacturer: IXYS
  • Series: LCB, OptoMOS™
  • Circuit: SPST-NC (1 Form B)
  • Termination Style: PC Pin
  • On-State Resistance: 35 Ohms
  • Load Current: 120 mA
  • Input Voltage: 1.2VDC
  • Output: AC and DC
  • Mounting: Through-Hole
  • Package: 6-DIP
  • Standard Package: 50 pcs
