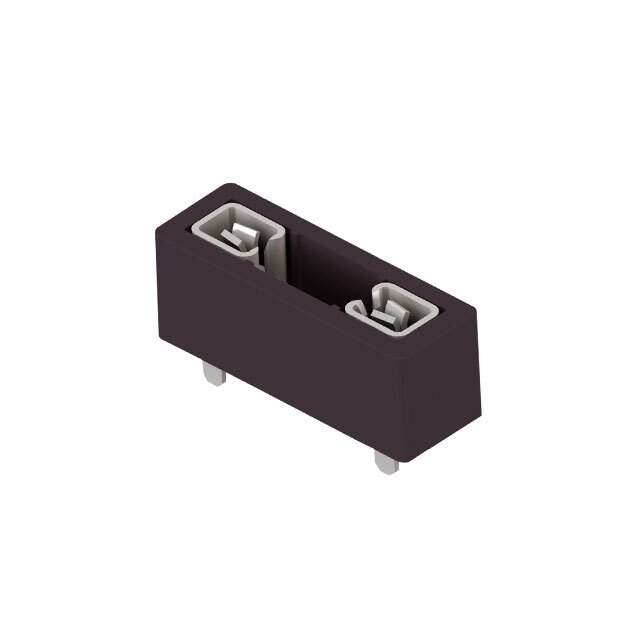

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Keystone Electronics
Package Bulk
Mounting Type Through Hole
Current Rating (Amps) 30 A
For Use With/Related Products ATC, ATO, Miniature (Low Profile) (ATT)
Fuse Type Blade
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin Nickel
Other Names 3557-2K,36-3557-2,Q5560617,35572,3557-2KL,3557-2K
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.8585
Win Source Part Number 1302278-3557-2
Ultra Librarian 3D Model Ultra Librarian 3557-2 CAD Model

Description

The Keystone Electronics 3557-2 is a fuse holder block that is used with ATC, ATO, and miniature (low profile) (ATT) fuses.

  • Current Rating: 30A
  • Voltage: 500V
  • Mounting: through a hole
  • Termination Style: PC pin
  • Contact Material: brass
  • Contact Finish: tin nickel finish
  • Standard Package: 1
  • Orientation: vertical
  • MSL Level: 1 (Unlimited)
  • REACH Status: unaffected
