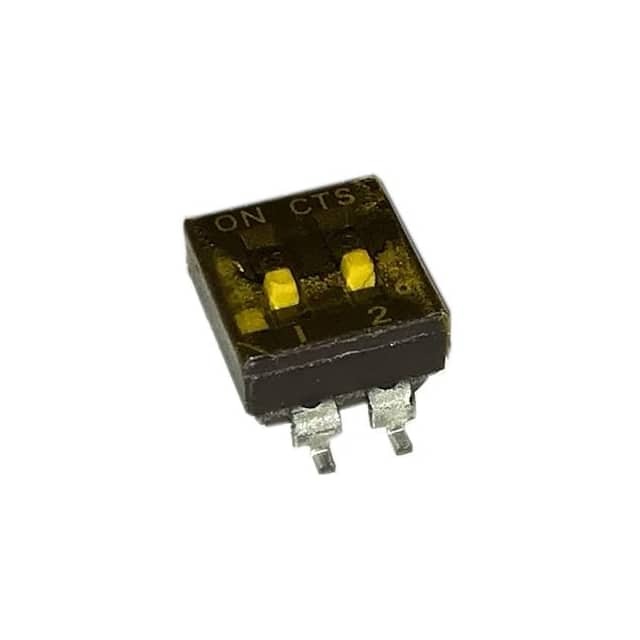

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.170" (4.33mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Length 0.258" (6.55mm)
Electrical Life 2,000 Cycles
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 844860-219-2MSTRF
Ultra Librarian 3D Model Ultra Librarian 219-2MSTRF CAD Model

Description

The 844860-219-2MSTRF is a DIP switch manufactured by CTS Electrocomponents.

  • Series: 219
  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Design: Full Pitch
  • Termination Style: Gull Wing
  • Terminals: Epoxy Sealed with Tape Seal
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Package: Tape & Reel
  • Standard Package Size: 1,000 pcs
  • Voltage Rating: 20VDC
  • Current Rating: 100mA
  • Height Above Board: 0.170" (4.33mm)
  • Length: 0.258" (6.55mm)
  • Switch Type: SPST
  • Actuator Type: Slide
  • Electrical Life: 2,000 Cycles
  • Washable: Yes
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 85°C
  • REACH Compliant: Yes
  • California Prop 65 Warning: Yes
