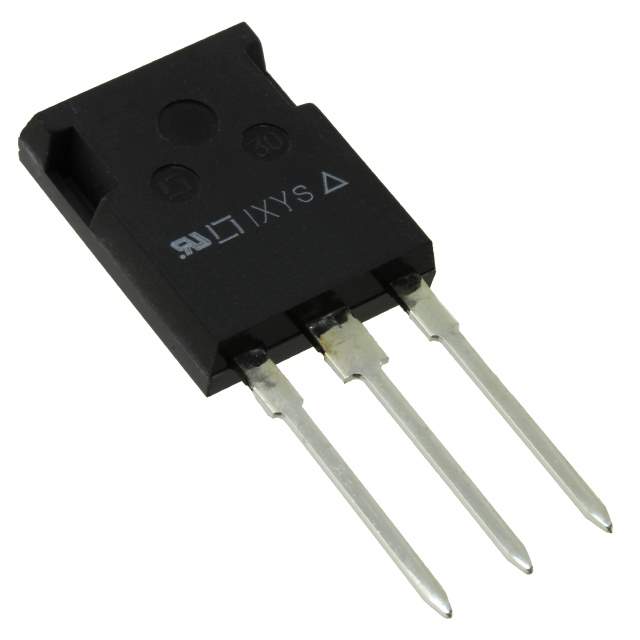

IXGR40N60CD1 Real Image
Same model may have multiple batches, images only for reference.

IXGR40N60CD1

Part No IXGR40N60CD1
Manufacturer IXYS
Catalog IGBTs - Single
Description HiPerFAST IGBT ISOPLUS247
Datasheet
IXGR40N60CD1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerFAST
Packaging Tube
Part Status Obsolete(EOL)
IGBT Type PT
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 75A
Current - Collector Pulsed (Icm) 150A
Vce(on) (Maximum) @ Vge, Ic 2.7V @ 15V, 40A
Power - Max 200W
Switching Energy 850μJ (off)
Input Type Standard
Gate Charge 116nC
Td (on/off) @ 25°C 25ns/100ns
Test Condition 480V, 40A, 4.7 Ohm, 15V
Reverse Recovery Time (trr) 3.5ns
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package ISOPLUS247
Manufacturer Package ISOPLUS247
Win Source Part Number 1191209-IXGR40N60CD1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name IXGR40N60CD1
Introduction Date March 07, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian IXGR40N60CD1 CAD Model

Description

The IXYS IXGR40N60CD1 is a PT type IGBT designed for high-speed switching applications.

  • Type: PT IGBT.
  • Collector Current (Maximum): 75A.
  • Collector-Emitter Voltage Breakdown (Maximum): 600V.
  • Gate Charge: 116nC.
  • Reverse Recovery Time: 3.5ns.
  • Power Rating: 200W.
  • Package: Through-hole ISOPLUS247.
  • Operating Temperature: -55°C to 150°C.
  • Status: Obsolete (EOL).
  • Popularity: Medium.
  • Supply/Demand: Limited.
