Same model may have multiple batches, images only for reference.

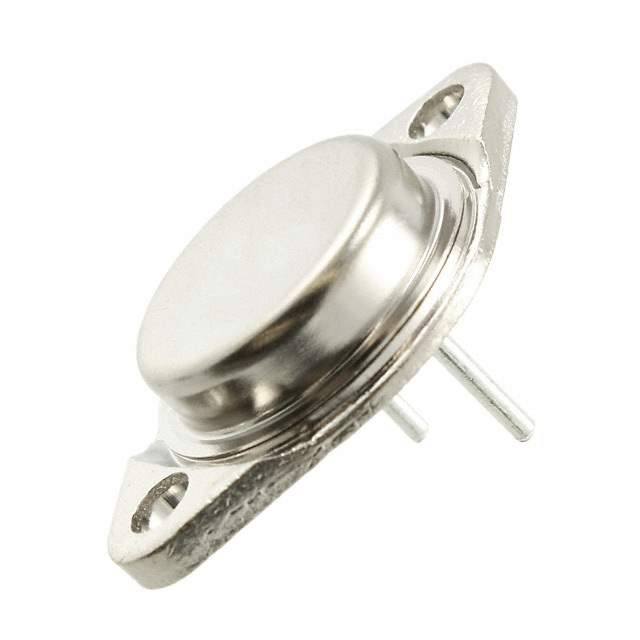

IXGM40N60A Real Image
Same model may have multiple batches, images only for reference.

IXGM40N60A

Part No IXGM40N60A
Manufacturer IXYS
Catalog IGBTs - Modules
Description Low VCE(sat) IGBT, High speed IGBT | IGBT LO VOLT 600V 75AMP TO-204AE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Status Obsolete
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 75A
Maximum Power 250W
Vce(on) (Maximum) at Vge, Ic 3V at 15V, 40A
Current - Collector Cutoff (Maximum) 200μA
Input Capacitance (Cies) at Vce 4.5nF at 25V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package TO-204AA, TO-3
Supplier Device Package TO-204
Family Part Number IXG*40N60
Manufacturer Pack Quantity 20
MSL Level Not Applicable
Win Source Part Number 1191202-IXGM40N60A
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXGM40N60A CAD Model

Description

The IXGM40N60A is an IGBT transistor manufactured by IXYS.

  • Configuration: Chassis Mount
  • Maximum Collector Current (Ic): 75A
  • Maximum Collector-Emitter Breakdown Voltage: 600V
  • Maximum Power Dissipation: 250W
  • Vce(on) (Maximum) @ Vge, Ic: 3V @ 15V, 40A
  • Input Capacitance (Cies) @ Vce: 4.5nF @ 25V
  • Status: Obsolete
  • Supply and Demand Status: Limited
