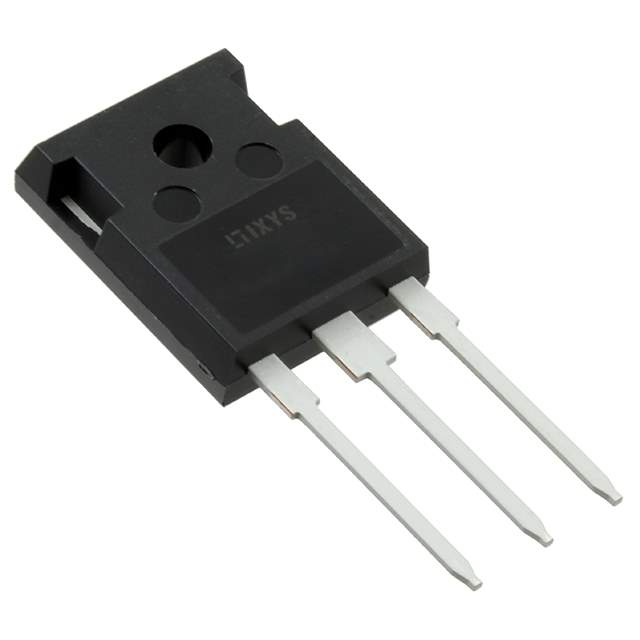

IXFH22N60P

Name: IXFH22N60P
Brand: IXYS
SKU: 608373
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXFH22N60P
Manufacturer	IXYS
Catalog	FETs - Single
Description	PolarHV HiPerFET Power MOSFETs \| MOSFET N-CH 600V 22A TO-247
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	IXYS
Packaging	Tube
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	600V
Id - Continuous Drain Current	22A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	350mOhm at 11A, 10V
Gate Source Voltage(th) (Maximum) at Id	5.5V at 4mA
Gate Charge (Qg) (Maximum) at Vgs	58nC at 10V
Gate Source Voltage (Maximum)	±30V
Input Capacitance (Ciss) (Maximum) at Vds	3600pF at 25V
Power Dissipation (Maximum)	400W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	TO-247AD (IXFH)
Manufacturer Package	TO-247-3
Manufacturer Pack Quantity	30
MSL Level	1 (Unlimited)
Win Source Part Number	1191061-IXFH22N60P
Manufacturer Homepage	www.ixys.com
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian IXFH22N60P CAD Model

Description

The IXFH22N60P is a MOSFET semiconductor device manufactured by IXYS.

The product has a sufficient supply and demand status and comes in a manufacturer pack quantity of 30.
Maximum power dissipation: 400W
Vds - Drain-Source Breakdown Voltage: 600V
Id - Continuous Drain Current: 22A
Rds On (Maximum): 350mOhm @ 11A, 10V
Gate source voltage(th) (Maximum): 5.5V @ 4mA
Gate charge (Qg) (Maximum): 58nC @ 10V
Gate source voltage (Maximum): ±30V
Input capacitance (Ciss) (Maximum): 3600pF @ 25V
