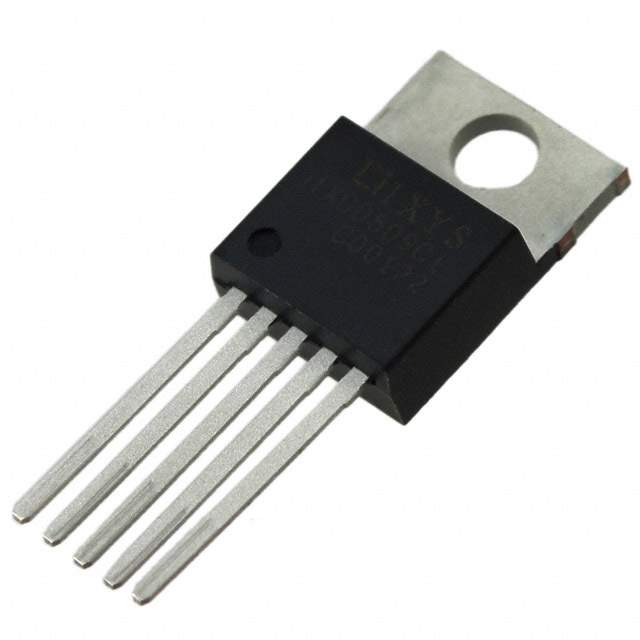

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Non-Inverting
Rise / Fall Time 22ns, 15ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-5
Supplier Device Package TO-220-5
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1190947-IXDD609CI
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXDD609CI CAD Model

Description

The IXDD609CI is a single channel driver IC designed for low-side, non-inverting driven configuration.

  • Product Name: IXDD609CI
  • Function: Driver IC
  • Channel Configuration: Single Channel
  • Drive Configuration: Low-Side, Non-Inverting
  • Gate Type: IGBT, N-Channel, P-Channel MOSFET
  • Logic Voltage (VIL): 0.8V
  • Logic Voltage (VIH): 3V
  • Peak Output Current (Source): 9A
  • Peak Output Current (Sink): 9A
  • Package: TO-220-5
  • Operating Temperature Range: -55°C to 150°C
  • Application: Integrated Circuits
