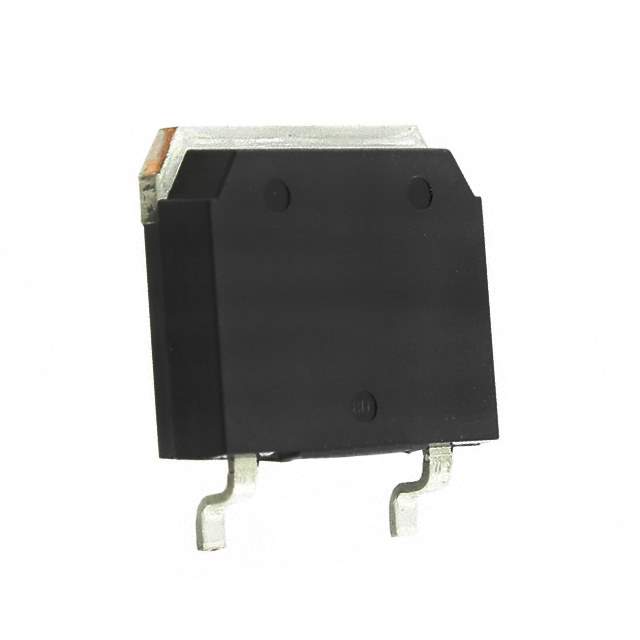

IXBT16N170A

Name: IXBT16N170A
Brand: IXYS
SKU: 777601
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IXBT16N170A
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1700V 16A 150W TO268 / Trans IGBT Chip N-CH 1700V 16A 190000mW 3-Pin(2+Tab) TO-268
Datasheet	IXBT16N170A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	IXYS
Series	BIMOSFET
Packaging	Bulk
Voltage - Collector Emitter Breakdown (Maximum)	1700V
Current - Collector (Ic) (Maximum)	16A
Current - Collector Pulsed (Icm)	40A
Vce(on) (Maximum) @ Vge, Ic	6V @ 15V, 10A
Power - Max	150W
Switching Energy	1.2mJ (off)
Input Type	Standard
Gate Charge	65nC
Td (on/off) @ 25°C	15ns/160ns
Test Condition	1360V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr)	360ns
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Package	TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Manufacturer Package	TO-268
Win Source Part Number	777601-IXBT16N170A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	IXBT 16N170A
Introduction Date	October 21, 2000
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IXBT16N170A CAD Model

Description

The IXYS BIMOSFET series presents the IXBT 16N170A, a high power MOSFET.

Maximum Power: 150W
Current Collector (Ic): 16A
Voltage Collector Emitter Breakdown (Vce): 1700V
Operating Temperature Range: -55°C to 150°C
Reverse Recovery Time (trr): 360ns
Switching Energy: 1.2mJ (off)
Input Type: Standard
Gate Charge: 65nC
Td (on/off) @ 25°C: 15ns/160ns
Package: TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
