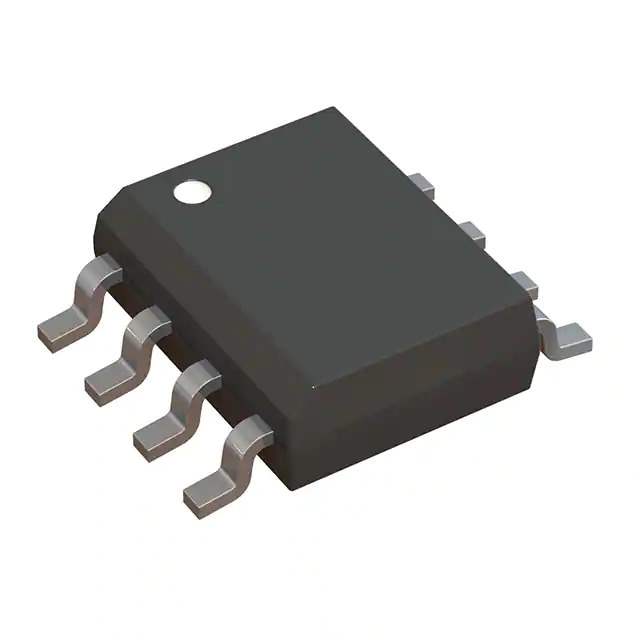

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr IXYS
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 4.5V ~ 30V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 3A, 3A
Input Type Non-Inverting
Rise / Fall Time (Typ) 18ns, 18ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number IX4424
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 849200-IX4424NTR
Ultra Librarian 3D Model Ultra Librarian IX4424NTR CAD Model

Description

The IX4424NTR is a gate driver integrated circuit from IXYS.

  • Application: power management
  • Category: PMIC
  • MOSFET Compatibility: N-Channel and P-Channel
  • Package: tape and reel
  • Standard Package: 2,000 pieces
  • Channels: independent
  • Input Type: non-inverting
  • Driven Configuration: low-side
  • Number of Drivers: two
  • Logic Voltage: 0.8V to 3V
  • Peak Output Current: 3A (source and sink)
  • Rise and Fall Time: 18ns
  • Voltage Supply: 4.5V to 30V
  • Mounting Type: surface mount
  • Package Type: 8-SOIC
  • Operating Temperature: -55°C to 150°C
  • California Prop 65: Complies
  • Product Status: obsolete
