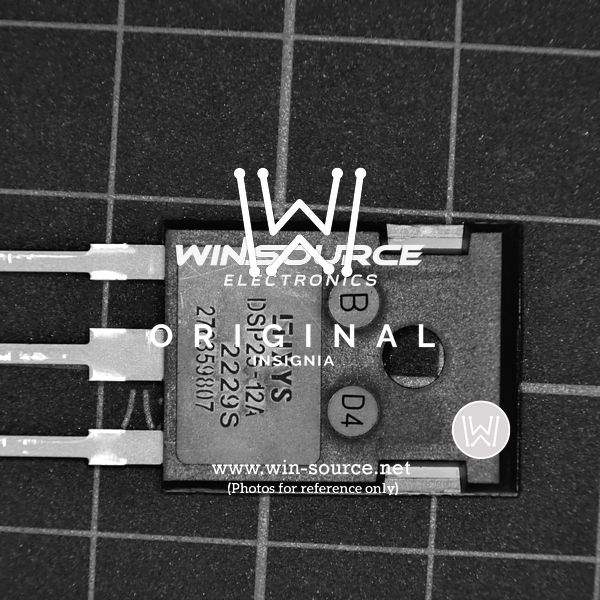

DSP25-12A Real Image DSP25-12A Real Image
Same model may have multiple batches, images only for reference.
DSP25-12A Real Image DSP25-12A Real Image
DSP25-12A Real Image DSP25-12A Real Image
Same model may have multiple batches, images only for reference.

DSP25-12A

Part No DSP25-12A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description Rectifier Diode 1.2KV 25A 3-Pin(3+Tab) TO-247AD / DIODE ARRAY GP 1200V 28A TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200V (1.2kV)
Current - Average Rectified (Io) (per Diode) 28A
Voltage - Forward (Vf) (Max) @ If 1.6V @ 55A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 1200V
Operating Temperature - Junction -40°C to 180°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 050960-DSP25-12A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DSP25-12A
Introduction Date October 25, 2000
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian DSP25-12A CAD Model

Description

DSP25-12A

The DSP25-12A is an advanced component that excels in both performance and adaptability. Suited for a wide array of projects, it is engineered for those who prioritize precision and reliability.

  • Applications/Projects:
    • Renewable Energy Systems
    • Motor Control Applications
    • Power Supply Units
  • Features and Benefits:
    • High-Current Capacity: Supports substantial power loads.
    • Precision Control: Offers accurate parameter adjustments.
    • Thermal Stability: Maintains performance across temperature fluctuations.
  • Additional Details:
    • Material Quality: Composed of high-grade materials for enhanced longevity.
    • Installation: Simplified installation process.
